Linear Optics 1R for SMD W2
Linear 1-row optics for LED Line SMD W2 modules
The optics for W2 modules are made of high-quality PMMA offer a variety of usage in application fields of office, retail, corridor and shelf lighting due to different light distributions, which are available in a length of 560 mm. Additionally, some types are also available in a lenght of 280 mm. To create longer module chains several optics can be stringed together. The optics are designed as single lens or tunnel lens versions and are suitable for Zhaga-compliant modules from 560 x 20 mm to 560 x 24 mm. Optic with tunnel lenses could be used with a variable number of LEDs.
Product benefits
- Glareless and excellent lens design
- Screwless clip fixation
- UV-resistance
- Variants with Constant Light Colour (CLC) available
- Variants with Extended Luminous Area (ELA) available
- Variants with UGR optimized light distributions available
- Optical efficiency: up to 96%
Choose a variant:
-
-
-
-
Linear Optics 1R for SMD W2 Universal Tunnel Lens 560 mm IP20/40
| Ref. No. | Type | Light distribution | Light distribution | Family data sheet | Material | Light transmission | Surface texture | Length | Width | Height | LED technology |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 568609 | 96601 |
|

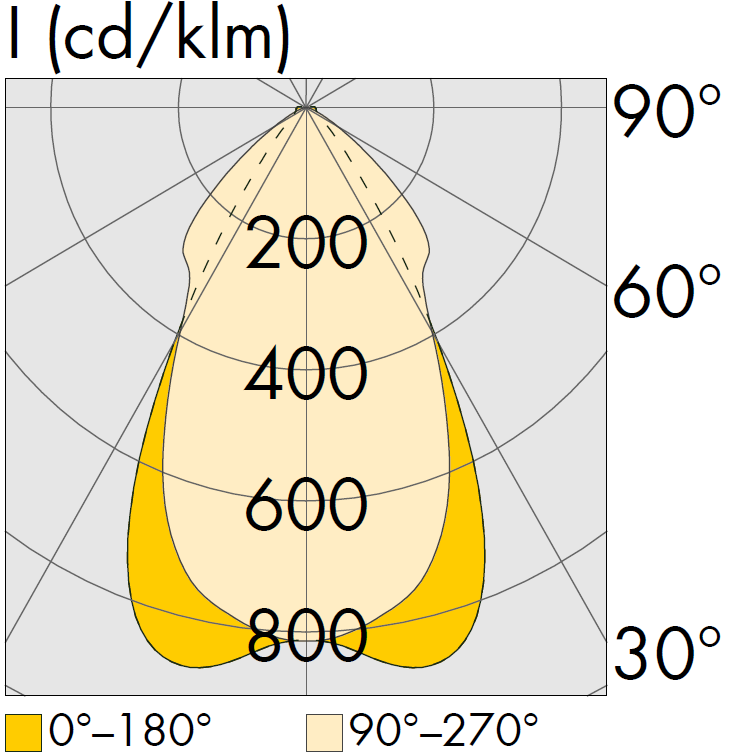

Retail SYM 1 | PMMA | clear | microstructure | 559mm | 43mm | 11.6mm | SMD | |
| 568611 | 96603 |
|

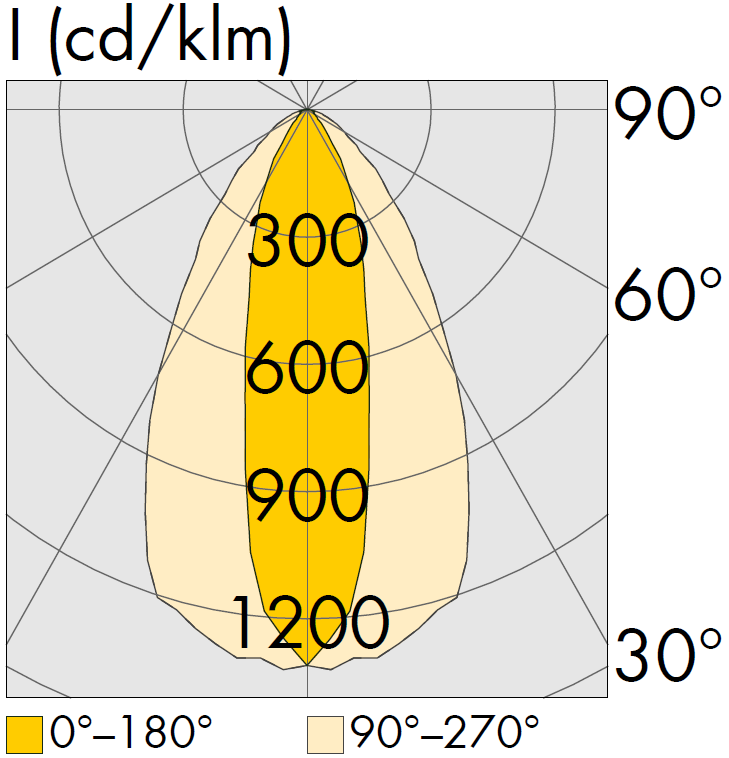

Medium 60° | PMMA | clear | microstructure | 559mm | 43mm | 11.6mm | SMD | |
| 568608 | 96600 |
|
Wide 90° | PMMA | clear | microstructure | 559mm | 43mm | 11.6mm | SMD | |
| 568617 | 96600 |
|
Diffuse 105° | PMMA | diffuse | microstructure | 559mm | 43mm | 11.6mm | SMD | |
| 568610 | 96602 |
|
High Rack | PMMA | clear | microstructure | 559mm | 43mm | 11.6mm | SMD |
| Ref. No. | Type | Light distribution |
|---|---|---|
| 568609 | 96601 | Retail SYM 1 |
| 568611 | 96603 | Medium 60° |
| 568608 | 96600 | Wide 90° |
| 568617 | 96600 | Diffuse 105° |
| 568610 | 96602 | High Rack |
| Ref. No. | Type | Light distribution | 2D data | 3D data |
|---|---|---|---|---|
| 568609 | 96601 |
|
||
| 568611 | 96603 |
|
||
| 568608 | 96600 |
|
||
| 568617 | 96600 |
|
||
| 568610 | 96602 |
|
| Ref. No. | Type | Light distribution | ldt und ies data |
|---|---|---|---|
| 568609 | 96601 |
|
|
| 568611 | 96603 |
|
|
| 568608 | 96600 |
|
|
| 568617 | 96600 |
|
|
| 568610 | 96602 |
|
| Ref. No. | Type | Light distribution |
|---|---|---|
| 568609 | 96601 |
|
| 568611 | 96603 |
|
| 568608 | 96600 |
|
| 568617 | 96600 |
|
| 568610 | 96602 |
|
| Ref. No. | Type | ||
|---|---|---|---|
| 568609 | 96601 | ||
| 568611 | 96603 | ||
| 568608 | 96600 | ||
| 568617 | 96600 | ||
| 568610 | 96602 |
| Ref. No. | Type | 2D data | 3D data |
|---|---|---|---|
| 568609 | 96601 |
|
|
| 568611 | 96603 |
|
|
| 568608 | 96600 |
|
|
| 568617 | 96600 |
|
|
| 568610 | 96602 |
|
Linear Optics 1R for SMD W2 24 Single Lenses 280 mm IP20/40
| Ref. No. | Type | Light distribution | Light distribution | Family data sheet | Material | Light transmission | Surface texture | Length | Width | Height | LED technology |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 569606 | 97053 |
|
Medium 60° | PMMA | clear | microstructure | 279mm | 43mm | 11.6mm | SMD | |
| 569760 | 97050 |
|
Wide 90° | PMMA | clear | microstructure | 279mm | 43mm | 11.6mm | SMD | |
| 569770 | 97057 |
|
Medium 60° UGR | PMMA | clear | microstructure | 279mm | 43mm | 11.6mm | SMD | |
| 570527 | 97054 |
|
Retail ASYM | PMMA | clear | microstructure | 279mm | 43mm | 11.6mm | SMD | |
| 570528 | 97051 |
|
Retail SYM 1 | PMMA | clear | microstructure | 279mm | 43mm | 11.6mm | SMD | |
| 571598 | 97050 |
|
Diffuse 100° | PMMA | clear | microstructure | 279mm | 43mm | 11.6mm | SMD |
| Ref. No. | Type | Light distribution |
|---|---|---|
| 569606 | 97053 | Medium 60° |
| 569760 | 97050 | Wide 90° |
| 569770 | 97057 | Medium 60° UGR |
| 570527 | 97054 | Retail ASYM |
| 570528 | 97051 | Retail SYM 1 |
| 571598 | 97050 | Diffuse 100° |
| Ref. No. | Type | Light distribution | 2D data | 3D data |
|---|---|---|---|---|
| 569606 | 97053 |
|
||
| 569760 | 97050 |
|
||
| 569770 | 97057 |
|
||
| 570527 | 97054 |
|
||
| 570528 | 97051 |
|
||
| 571598 | 97050 |
|
| Ref. No. | Type | Light distribution |
|---|---|---|
| 569606 | 97053 |
|
| 569760 | 97050 |
|
| 569770 | 97057 |
|
| 570527 | 97054 |
|
| 570528 | 97051 |
|
| 571598 | 97050 |
|
| Ref. No. | Type | ||
|---|---|---|---|
| 569606 | 97053 | ||
| 569760 | 97050 | ||
| 569770 | 97057 | ||
| 570527 | 97054 | ||
| 570528 | 97051 | ||
| 571598 | 97050 |
| Ref. No. | Type | 2D data | 3D data |
|---|---|---|---|
| 569606 | 97053 |
|
|
| 569760 | 97050 |
|
|
| 569770 | 97057 |
|
|
| 570527 | 97054 |
|
|
| 570528 | 97051 |
|
|
| 571598 | 97050 |
|
Linear Optics 1R for SMD W2 Tunnel Lens 560 mm IP20/40
| Ref. No. | Type | Light distribution | Light distribution | Family data sheet | Material | Light transmission | Surface texture | Length | Width | Height | LED technology |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 568243 | 97100 |
|
Wide 90° | PMMA | clear | microstructure | 559mm | 43mm | 11.6mm | SMD | |
| 568244 | 97101 |
|
Retail SYM 1 | PMMA | clear | microstructure | 559mm | 43mm | 11.6mm | SMD | |
| 568246 | 97103 |
|
Medium 60° | PMMA | clear | microstructure | 559mm | 43mm | 11.6mm | SMD | |
| 568618 | 97100 |
|
Diffuse 105° | PMMA | diffuse | microstructure | 559mm | 43mm | 11.6mm | SMD | |
| 568245 | 97102 |
|
High Rack | PMMA | clear | microstructure | 559mm | 43mm | 11.6mm | SMD |
| Ref. No. | Type | Light distribution |
|---|---|---|
| 568243 | 97100 | Wide 90° |
| 568244 | 97101 | Retail SYM 1 |
| 568246 | 97103 | Medium 60° |
| 568618 | 97100 | Diffuse 105° |
| 568245 | 97102 | High Rack |
| Ref. No. | Type | Light distribution | 2D data | 3D data |
|---|---|---|---|---|
| 568243 | 97100 |
|
||
| 568244 | 97101 |
|
||
| 568246 | 97103 |
|
||
| 568618 | 97100 |
|
||
| 568245 | 97102 |
|
| Ref. No. | Type | Light distribution | ldt und ies data |
|---|---|---|---|
| 568243 | 97100 |
|
|
| 568244 | 97101 |
|
|
| 568246 | 97103 |
|
|
| 568618 | 97100 |
|
|
| 568245 | 97102 |
|
| Ref. No. | Type | Light distribution |
|---|---|---|
| 568243 | 97100 |
|
| 568244 | 97101 |
|
| 568246 | 97103 |
|
| 568618 | 97100 |
|
| 568245 | 97102 |
|
| Ref. No. | Type | ||
|---|---|---|---|
| 568243 | 97100 | ||
| 568244 | 97101 | ||
| 568246 | 97103 | ||
| 568618 | 97100 | ||
| 568245 | 97102 |
| Ref. No. | Type | 2D data | 3D data |
|---|---|---|---|
| 568243 | 97100 |
|
|
| 568244 | 97101 |
|
|
| 568246 | 97103 |
|
|
| 568618 | 97100 |
|
|
| 568245 | 97102 |
|
Linear Optics 1R for SMD W2 48 Single Lenses 560 mm IP20/40
| Ref. No. | Type | Light distribution | Light distribution | Family data sheet | Material | Light transmission | Surface texture | Length | Width | Height | LED technology |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 568075 | 97000 |
|
Wide 90° | PMMA | clear | microstructure | 559mm | 43mm | 11.6mm | SMD | |
| 568236 | 97005 |
|
Extra Wide 110° | PMMA | clear | microstructure | 559mm | 43mm | 11.6mm | SMD | |
| 568237 | 97004 |
|
Retail ASYM | PMMA | clear | microstructure | 559mm | 43mm | 11.6mm | SMD | |
| 568238 | 97003 |
|
Medium 60° | PMMA | clear | microstructure | 559mm | 43mm | 11.6mm | SMD | |
| 568239 | 97002 |
|
Narrow 30° | PMMA | clear | microstructure | 559mm | 43mm | 11.6mm | SMD | |
| 568240 | 97001 |
|
Retail SYM 1 | PMMA | clear | microstructure | 559mm | 43mm | 11.6mm | SMD | |
| 568412 | 97000 |
|
Diffuse 100° | PMMA | diffuse | microstructure | 559mm | 43mm | 11.6mm | SMD | |
| 568413 | 97001 |
|
Retail SYM 2 | PMMA | clear | microstructure | 559mm | 43mm | 11.6mm | SMD | |
| 569721 | 97007 |
|
Medium 60° UGR | PMMA | clear | microstructure | 559mm | 43mm | 11.6mm | SMD | |
| 571979 | 97009 |
|
High Rack | PMMA | clear | microstructure | 559mm | 43mm | 11.6mm | SMD | |
| 571980 | 97010 |
|
Wide 90° | PMMA | clear | microstructure | 559mm | 43mm | 11.6mm | SMD |
| Ref. No. | Type | Light distribution |
|---|---|---|
| 568075 | 97000 | Wide 90° |
| 568236 | 97005 | Extra Wide 110° |
| 568237 | 97004 | Retail ASYM |
| 568238 | 97003 | Medium 60° |
| 568239 | 97002 | Narrow 30° |
| 568240 | 97001 | Retail SYM 1 |
| 568412 | 97000 | Diffuse 100° |
| 568413 | 97001 | Retail SYM 2 |
| 569721 | 97007 | Medium 60° UGR |
| 571979 | 97009 | High Rack |
| 571980 | 97010 | Wide 90° |
| Ref. No. | Type | Light distribution | 2D data | 3D data |
|---|---|---|---|---|
| 568075 | 97000 |
|
||
| 568236 | 97005 |
|
||
| 568237 | 97004 |
|
||
| 568238 | 97003 |
|
||
| 568239 | 97002 |
|
||
| 568240 | 97001 |
|
||
| 568412 | 97000 |
|
||
| 568413 | 97001 |
|
||
| 569721 | 97007 |
|
||
| 571979 | 97009 |
|
||
| 571980 | 97010 |
|
| Ref. No. | Type | Light distribution |
|---|---|---|
| 568075 | 97000 |
|
| 568236 | 97005 |
|
| 568237 | 97004 |
|
| 568238 | 97003 |
|
| 568239 | 97002 |
|
| 568240 | 97001 |
|
| 568412 | 97000 |
|
| 568413 | 97001 |
|
| 569721 | 97007 |
|
| 571979 | 97009 |
|
| 571980 | 97010 |
|
| Ref. No. | Type | ||
|---|---|---|---|
| 568075 | 97000 | ||
| 568236 | 97005 | ||
| 568237 | 97004 | ||
| 568238 | 97003 | ||
| 568239 | 97002 | ||
| 568240 | 97001 | ||
| 568412 | 97000 | ||
| 568413 | 97001 | ||
| 569721 | 97007 | ||
| 571979 | 97009 | ||
| 571980 | 97010 |
| Ref. No. | Type | 2D data | 3D data |
|---|---|---|---|
| 568075 | 97000 |
|
|
| 568236 | 97005 |
|
|
| 568237 | 97004 |
|
|
| 568238 | 97003 |
|
|
| 568239 | 97002 |
|
|
| 568240 | 97001 |
|
|
| 568412 | 97000 |
|
|
| 568413 | 97001 |
|
|
| 569721 | 97007 |
|
|
| 571979 | 97009 |
|
|
| 571980 | 97010 |
|
