Linear Optics 3R for SMD W5.5

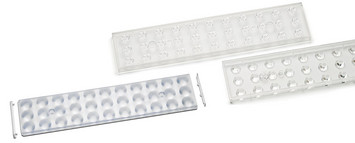

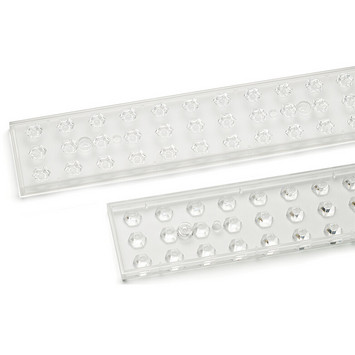

Linear 3-row optics for LED Line SMD W5.5 modules

Due to brilliant surfaces and light distributions the optics made of high-quality PMMA offer a variety of usage in application fields of office, retail, corridor and shelf lighting. To create longer module chains several optics can be stringed together. Furthermore, mat optics with constant light colour over the beam angle (CLC) and high-glossy optics with low UGR values are available.

Product benefits

  • Glareless and excellent lens design
  • UV-resistance
  • Variants with Constant Light Colour (CLC) available
  • Variants with UGR optimized light distributions available
  • Variants with end caps available, for luminaire protection class IP40
  • Variants with protection class (incl. gasket) IP54
  • Zhaga-compliant dimensions
  • Optical efficiency: up to 95%

Choose a variant:

Linear Optics 3R for SMD W5.5 33 Single Lenses 280 mm IP20/40

Ref. No. Type Light distribution Light distribution Family data sheet Material Light transmission Surface texture Length Width Height LED technology
560371 99400 Extra Wide 110° PMMA clear high-glossy 285.4mm 62mm 11.25mm SMD
560372 99401 Medium 60° PMMA clear high-glossy 285.4mm 62mm 11.25mm SMD
560373 99402 Retail SYM 1 PMMA clear high-glossy 285.4mm 62mm 11.25mm SMD
560374 99403 Retail ASYM PMMA clear high-glossy 285.4mm 62mm 11.25mm SMD
560375 99404 Narrow 30° PMMA clear high-glossy 285.4mm 62mm 11.25mm SMD
562543 99400 Diffuse 105° PMMA diffuse high-glossy 285.4mm 62mm 11.25mm SMD
563337 99412 SYM PMMA clear mat 285.4mm 62mm 11.25mm SMD
563338 99413 Retail ASYM PMMA clear mat 285.4mm 62mm 11.25mm SMD
563660 99411 Medium 60° PMMA clear mat 285.4mm 62mm 11.25mm SMD
564557 99410 Extra Wide 110° PMMA clear mat 285.4mm 62mm 11.25mm SMD
564558 99414 Narrow 30° PMMA clear mat 285.4mm 62mm 11.25mm SMD
564559 99415 Wide 80° PMMA clear mat 285.4mm 62mm 11.25mm SMD
Ref. No. Type Light distribution
560371 99400 Extra Wide 110°
560372 99401 Medium 60°
560373 99402 Retail SYM 1
560374 99403 Retail ASYM
560375 99404 Narrow 30°
562543 99400 Diffuse 105°
563337 99412 SYM
563338 99413 Retail ASYM
563660 99411 Medium 60°
564557 99410 Extra Wide 110°
564558 99414 Narrow 30°
564559 99415 Wide 80°
Ref. No. Type Light distribution 2D data 3D data
560371 99400
560372 99401
560373 99402
560374 99403
560375 99404
562543 99400
563337 99412
563338 99413
563660 99411
564557 99410
564558 99414
564559 99415
Ref. No. Type Light distribution ldt und ies data
560371 99400
560372 99401
560373 99402
560374 99403
560375 99404
562543 99400
563337 99412
563338 99413
563660 99411
564557 99410
564558 99414
564559 99415
Ref. No. Type Light distribution
560371 99400
560372 99401
560373 99402
560374 99403
560375 99404
562543 99400
563337 99412
563338 99413
563660 99411
564557 99410
564558 99414
564559 99415
Ref. No. Type
560371 99400
560372 99401
560373 99402
560374 99403
560375 99404
562543 99400
563337 99412
563338 99413
563660 99411
564557 99410
564558 99414
564559 99415
Ref. No. Type 2D data 3D data
560371 99400
560372 99401
560373 99402
560374 99403
560375 99404
562543 99400
563337 99412
563338 99413
563660 99411
564557 99410
564558 99414
564559 99415

Linear Optics 3R for SMD W5.5 33 Single Lenses 280 mm IP54

Ref. No. Type Light distribution Light distribution Family data sheet Material Light transmission Surface texture Length Width Height LED technology
564166 99501 Medium 60° PMMA clear high-glossy 298mm 64mm 11.75mm SMD
564167 99504 High Rack PMMA clear high-glossy 298mm 64mm 11.75mm SMD
564168 99505 Wide 90° PMMA clear high-glossy 298mm 64mm 11.75mm SMD
564461 99501 Diffuse 100° PMMA diffuse high-glossy 298mm 64mm 11.75mm SMD
569346 99501 Medium 60° PC clear high-glossy 298mm 64mm 11.75mm SMD
570435 99505 Wide 90° PC clear high-glossy 298mm 64mm 11.75mm SMD
571762 99503 Extra Wide 110° PMMA clear high-glossy 298mm 64mm 11.75mm SMD
571764 99503 Extra Wide 110° PC clear high-glossy 298mm 64mm 11.75mm SMD
572476 99504 High Rack PC clear high-glossy 298mm 64mm 11.75mm SMD
Ref. No. Type Light distribution
564166 99501 Medium 60°
564167 99504 High Rack
564168 99505 Wide 90°
564461 99501 Diffuse 100°
569346 99501 Medium 60°
570435 99505 Wide 90°
571762 99503 Extra Wide 110°
571764 99503 Extra Wide 110°
572476 99504 High Rack
Ref. No. Type Light distribution 2D data 3D data
564166 99501
564167 99504
564168 99505
564461 99501
569346 99501
570435 99505
571762 99503
571764 99503
572476 99504
Ref. No. Type Light distribution
564166 99501
564167 99504
564168 99505
564461 99501
569346 99501
570435 99505
571762 99503
571764 99503
572476 99504
Ref. No. Type
564166 99501
564167 99504
564168 99505
564461 99501
569346 99501
570435 99505
571762 99503
571764 99503
572476 99504
Ref. No. Type 2D data 3D data
564166 99501
564167 99504
564168 99505
564461 99501
569346 99501
570435 99505
571762 99503
571764 99503
572476 99504
