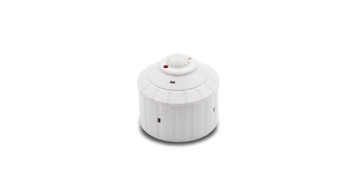

Blu2Light MultiSensor XS-SM
DALI controller as a surface-mounted version with Bluetooth® wireless technology and integrated daylight and motion sensors
The Blu2Light MultiSensors are designed for integration into building automation and cloud control of the building. The values detected by the sensor's measuring elements are made available via the integrated mesh-compatible Bluetooth® interface for regulation or control tasks of building systems.
Product benefits
- Space-saving housing as a surface-mounted version
- Combined light- and motion detection for up to 4m mounting height (minimum 3m)
- Direct supply via DALI line, no mains connection required
- Up to 64 DALI drivers addressable
- Integrated Bluetooth® Mesh radio module
Choose a variant:
Blu2Light MultiSensor XS-SM
| Ref. No. | Type | Family data sheet | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 187418 | B2L MultiSensor XS+ RAL 9016 with mounting case | 53 mm | 53 mm | 48.2 mm | 70.83 g |
| Ref. No. | Type | Min. voltage | Max. voltage | Min. mains frequency | Max. mains frequency |
|---|---|---|---|---|---|
| 187418 | B2L MultiSensor XS+ RAL 9016 with mounting case | 14 V | 18 V | 0 Hz | 0 Hz |
| Ref. No. | Type | Hardware interface | Wireless communication | |
|---|---|---|---|---|
| 187418 | B2L MultiSensor XS+ RAL 9016 with mounting case |
DALI |
over the air updateable |
Bluetooth |
| Ref. No. | Type |
|---|---|
| 187418 | B2L MultiSensor XS+ RAL 9016 with mounting case |
| Ref. No. | Type | EU Declaration of Conformity |
|---|---|---|
| 187418 | B2L MultiSensor XS+ RAL 9016 with mounting case |
| Ref. No. | Type |
|---|---|
| 187418 | B2L MultiSensor XS+ RAL 9016 with mounting case |
| Ref. No. | Type |
|---|---|
| 187418 | B2L MultiSensor XS+ RAL 9016 with mounting case |
| Ref. No. | Type | ||
|---|---|---|---|
| 187418 | B2L MultiSensor XS+ RAL 9016 with mounting case |
| Ref. No. | Type | 2D data | 3D data |
|---|---|---|---|
| 187418 | B2L MultiSensor XS+ RAL 9016 with mounting case |
|
