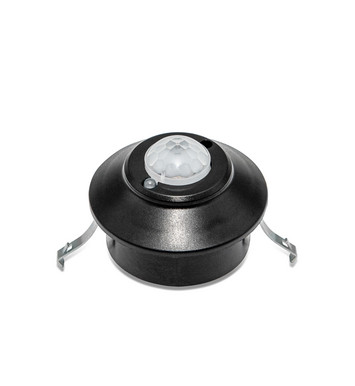

Blu2Light MovementSensor XS
DALI controller with Bluetooth® wireless technology and integrated motion sensors
The Blu2Light MultiSensors are designed for integration into building automation and cloud control of the building. The values detected by the sensor's measuring elements are made available via the integrated mesh-compatible Bluetooth® interface for regulation or control tasks of building systems.
Product benefits
- Space-saving housing
- Combined motion detection for up to 4m mounting height
- Direct supply via DALI line, no mains connection required
- Up to 64 DALI drivers addressable
- Integrated Bluetooth® Mesh radio module
- Suitable for ceiling or luminaire integration
Choose a variant:
Blu2Light MovementSensor XS
| Ref. No. | Type | Family data sheet | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|
| 187406 | B2L MovementSensor XS, black RAL 9005 | 40 mm | 40 mm | 43.8 mm | 30 g |
| Ref. No. | Type | Min. voltage | Max. voltage | Min. mains frequency | Max. mains frequency |
|---|---|---|---|---|---|
| 187406 | B2L MovementSensor XS, black RAL 9005 | 14 V | 18 V | 0 Hz | 0 Hz |
| Ref. No. | Type | Hardware interface | Wireless communication | |
|---|---|---|---|---|
| 187406 | B2L MovementSensor XS, black RAL 9005 |
DALI |
over the air updateable |
Bluetooth |
| Ref. No. | Type |
|---|---|
| 187406 | B2L MovementSensor XS, black RAL 9005 |
| Ref. No. | Type | EU Declaration of Conformity |
|---|---|---|
| 187406 | B2L MovementSensor XS, black RAL 9005 |
| Ref. No. | Type |
|---|---|
| 187406 | B2L MovementSensor XS, black RAL 9005 |
| Ref. No. | Type |
|---|---|
| 187406 | B2L MovementSensor XS, black RAL 9005 |
| Ref. No. | Type | ||
|---|---|---|---|
| 187406 | B2L MovementSensor XS, black RAL 9005 |
| Ref. No. | Type | 2D data | 3D data |
|---|---|---|---|
| 187406 | B2L MovementSensor XS, black RAL 9005 |
|
