LED Industry SMD W7.5, 6R

LED Modules for Industry Lighting

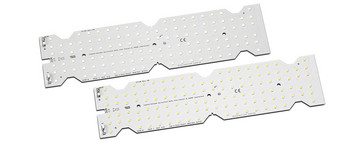

LED built-in module with on-board push terminal system for easy integration into luminaires.

Product benefits

Available in different colour temperatures
Can be combined with VS optics
Compact and slim design
Long service life time
Low heat development
Narrow colour tolerance: 3-step MacAdam
Three different beam angles available

Efficiency: up to 205 lm/W

Find system solution!

Choose a variant:

LED Industry W7.5, 6R-120LEDs

LED Industry W7.5, 6R-120LEDs

General data

Ref. No.	Type	LED quantity	Family data sheet	Length	Width	Height	LED technology	LED colour	Correlated colour temperature	Beam angle	Find system solution!
570989	WU-M-677-830	120 pcs.	LED-Industry-W7-5-6R-120-LEDs_WU-M-677_EN.pdf	289 mm	73.5 mm	5.5 mm	SMD	warm white	3000 K	120°
570990	WU-M-677-840	120 pcs.	LED-Industry-W7-5-6R-120-LEDs_WU-M-677_EN.pdf	289 mm	73.5 mm	5.5 mm	SMD	neutral white	4000 K	120°
570991	WU-M-677-850	120 pcs.	LED-Industry-W7-5-6R-120-LEDs_WU-M-677_EN.pdf	289 mm	73.5 mm	5.5 mm	SMD	cool white	5000 K	120°
570992	WU-M-677-865	120 pcs.	LED-Industry-W7-5-6R-120-LEDs_WU-M-677_EN.pdf	289 mm	73.5 mm	5.5 mm	SMD	cool white	6500 K	120°

Electrical operating data

Ref. No.	Type	LED quantity	Operating current	Typ. voltage DC	Typ. power consumption
570989	WU-M-677-830	120 pcs.	500 mA 700 mA 900 mA	64.6 V 65.5 V 66.2 V	32.3 W 45.9 W 59.6 W
570990	WU-M-677-840	120 pcs.	500 mA 700 mA 900 mA	64.6 V 65.5 V 66.2 V	32.3 W 45.9 W 59.6 W
570991	WU-M-677-850	120 pcs.	500 mA 700 mA 900 mA	64.6 V 65.5 V 66.2 V	32.3 W 45.9 W 59.6 W
570992	WU-M-677-865	120 pcs.	500 mA 700 mA 900 mA	64.6 V 65.5 V 66.2 V	32.3 W 45.9 W 59.6 W

Optical operating data

Ref. No.	Type	LED quantity	Current	Typ. luminous flux at If	Typ. efficiency at If	Typ. CRI (Ra)
570989	WU-M-677-830	120 pcs.	500 mA 700 mA 900 mA	6360 lm 8750 lm 11105 lm	197 lm/W 191 lm/W 186 lm/W	80 80 80
570990	WU-M-677-840	120 pcs.	500 mA 700 mA 900 mA	6615 lm 9100 lm 11550 lm	205 lm/W 198 lm/W 194 lm/W	80 80 80
570991	WU-M-677-850	120 pcs.	500 mA 700 mA 900 mA	6615 lm 9100 lm 11550 lm	205 lm/W 198 lm/W 194 lm/W	80 80 80
570992	WU-M-677-865	120 pcs.	500 mA 700 mA 900 mA	6295 lm 8660 lm 10990 lm	195 lm/W 189 lm/W 184 lm/W	80 80 80

Lifetime

Ref. No.	Type	LED quantity
570989	WU-M-677-830	120 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
500 mA 700 mA 900 mA	40 °C 40 °C 85 °C 50 °C 50 °C 50 °C 85 °C 40 °C 40 °C 40 °C 40 °C 85 °C 50 °C 85 °C 85 °C 50 °C 50 °C 85 °C 85 °C 50 °C 50 °C 50 °C 50 °C 40 °C 85 °C 40 °C 50 °C 40 °C 85 °C 40 °C 40 °C 40 °C 50 °C 85 °C 85 °C 85 °C 50 °C 50 °C 85 °C 40 °C 50 °C 85 °C 50 °C 85 °C 50 °C 85 °C 50 °C 85 °C 40 °C 40 °C 85 °C 40 °C 40 °C 40 °C	78000 hrs. 78000 hrs. 48000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 70000 hrs. 78000 hrs. 51000 hrs. 78000 hrs. 78000 hrs. 70000 hrs. 65000 hrs. 78000 hrs. 78000 hrs. 51000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 70000 hrs. 78000 hrs. 51000 hrs. 70000 hrs. 47000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 51000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 64000 hrs. 72000 hrs. 52000 hrs. 49000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 67000 hrs. 63000 hrs. 72000 hrs. 67000 hrs. 72000 hrs. 52000 hrs. 72000 hrs. 72000 hrs.	70 80 90 80 70 80 80 90 80 90 70 80 90 90 70 70 90 70 70 80 90 70 90 90 90 70 70 80 80 70 90 80 80 80 70 90 80 90 90 70 70 70 80 80 70 70 90 90 80 90 80 90 70 80	10 10 10 50 50 10 10 50 50 10 50 50 50 50 50 10 10 10 10 10 50 50 10 50 10 10 10 50 50 50 10 10 50 10 50 50 50 10 10 50 50 50 10 10 10 10 50 50 50 50 50 10 10 10
570990	WU-M-677-840	120 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
500 mA 700 mA 900 mA	85 °C 50 °C 85 °C 40 °C 40 °C 40 °C 50 °C 40 °C 85 °C 85 °C 40 °C 50 °C 40 °C 85 °C 50 °C 85 °C 50 °C 50 °C 40 °C 40 °C 50 °C 85 °C 40 °C 50 °C 50 °C 40 °C 50 °C 40 °C 85 °C 85 °C 40 °C 85 °C 50 °C 85 °C 50 °C 85 °C 85 °C 85 °C 50 °C 40 °C 40 °C 40 °C 85 °C 40 °C 50 °C 85 °C 50 °C 40 °C 50 °C 85 °C 50 °C 50 °C 85 °C 40 °C	78000 hrs. 70000 hrs. 48000 hrs. 70000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 65000 hrs. 78000 hrs. 51000 hrs. 51000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 70000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 51000 hrs. 51000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 64000 hrs. 78000 hrs. 47000 hrs. 70000 hrs. 78000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 52000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 67000 hrs. 72000 hrs. 49000 hrs. 67000 hrs. 72000 hrs. 72000 hrs. 63000 hrs. 52000 hrs. 72000 hrs. 72000 hrs. 72000 hrs.	80 90 90 90 80 70 80 70 90 70 90 90 80 80 70 70 80 70 90 80 80 70 80 80 70 90 90 70 70 80 70 90 70 90 90 80 80 80 70 90 70 80 70 90 70 90 90 80 80 90 90 80 70 70	10 50 10 50 50 10 50 50 50 10 10 10 10 50 50 50 10 10 50 10 10 10 50 50 10 10 10 50 50 10 10 50 50 10 50 50 50 10 10 10 50 50 10 50 50 10 50 10 10 50 10 50 50 10
570991	WU-M-677-850	120 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
500 mA 700 mA 900 mA	50 °C 85 °C 85 °C 85 °C 50 °C 40 °C 40 °C 50 °C 40 °C 50 °C 85 °C 40 °C 50 °C 85 °C 40 °C 50 °C 40 °C 85 °C 50 °C 85 °C 50 °C 40 °C 85 °C 40 °C 50 °C 85 °C 50 °C 40 °C 50 °C 85 °C 50 °C 85 °C 85 °C 40 °C 40 °C 40 °C 40 °C 50 °C 85 °C 50 °C 85 °C 40 °C 85 °C 40 °C 40 °C 40 °C 85 °C 50 °C 50 °C 85 °C 40 °C 50 °C 85 °C 50 °C	78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 51000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 70000 hrs. 70000 hrs. 48000 hrs. 78000 hrs. 78000 hrs. 51000 hrs. 65000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 51000 hrs. 70000 hrs. 70000 hrs. 64000 hrs. 78000 hrs. 78000 hrs. 47000 hrs. 78000 hrs. 51000 hrs. 78000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 67000 hrs. 72000 hrs. 52000 hrs. 72000 hrs. 72000 hrs. 67000 hrs. 72000 hrs. 63000 hrs. 72000 hrs. 52000 hrs. 49000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs.	70 80 70 70 90 80 80 80 70 70 80 90 90 90 70 80 90 90 80 80 70 80 80 70 70 70 90 90 90 90 80 70 90 70 90 80 70 80 70 90 80 90 80 80 90 70 90 80 90 90 80 70 70 70	10 50 10 50 10 10 50 50 50 50 10 50 50 10 10 10 10 50 50 50 50 10 10 50 10 50 10 50 50 50 10 10 10 10 10 50 50 10 10 50 50 10 10 50 50 10 50 50 10 10 10 10 50 50
570992	WU-M-677-865	120 pcs.
Operating current	Performance temperature (tp)	Service life	Lumen maintenance at (L)	Failure rate (B)
500 mA 700 mA 900 mA	40 °C 50 °C 50 °C 40 °C 50 °C 85 °C 40 °C 40 °C 85 °C 85 °C 85 °C 50 °C 50 °C 40 °C 40 °C 85 °C 50 °C 85 °C 40 °C 85 °C 40 °C 85 °C 40 °C 85 °C 50 °C 85 °C 50 °C 85 °C 40 °C 50 °C 40 °C 40 °C 50 °C 50 °C 85 °C 50 °C 40 °C 85 °C 50 °C 50 °C 50 °C 40 °C 50 °C 50 °C 85 °C 85 °C 40 °C 50 °C 40 °C 85 °C 85 °C 40 °C 40 °C 85 °C	78000 hrs. 78000 hrs. 78000 hrs. 70000 hrs. 70000 hrs. 78000 hrs. 51000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 65000 hrs. 51000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 48000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 47000 hrs. 78000 hrs. 78000 hrs. 70000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 64000 hrs. 78000 hrs. 51000 hrs. 51000 hrs. 78000 hrs. 70000 hrs. 78000 hrs. 78000 hrs. 78000 hrs. 52000 hrs. 49000 hrs. 67000 hrs. 72000 hrs. 52000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 67000 hrs. 63000 hrs. 72000 hrs. 72000 hrs. 72000 hrs. 72000 hrs.	70 70 70 90 90 70 90 80 70 80 90 90 80 70 80 90 80 80 80 90 70 70 90 80 70 70 80 90 80 90 90 70 90 80 80 70 90 90 90 80 90 80 70 80 70 80 70 70 90 90 80 70 80 70	50 50 10 50 50 50 10 10 10 50 50 10 10 10 50 10 50 10 10 10 10 10 50 50 50 50 10 50 50 10 10 50 50 50 10 10 10 10 50 50 10 50 50 10 50 10 10 10 50 50 50 50 10 10

EPREL data

Ref. No.	Type	EPREL registration number	Energy efficiency class
570989	WU-M-677-830	971440	C
570990	WU-M-677-840	971443	C
570991	WU-M-677-850	971446	C
570992	WU-M-677-865	971447	C

Ref. No.	Type	LED quantity	EU Declaration of Conformity	ENEC certificate
570989	WU-M-677-830	120 pcs.	EC Declaration of Conformity Module LED Industry SMD (WU-M-600-xx-yzz; WU-M-677-yzz).pdf	VDE_CERTIFICATE_0040052943_ORDER_320097_12325151.pdf
570990	WU-M-677-840	120 pcs.	EC Declaration of Conformity Module LED Industry SMD (WU-M-600-xx-yzz; WU-M-677-yzz).pdf	VDE_CERTIFICATE_0040052943_ORDER_320097_12325151.pdf
570991	WU-M-677-850	120 pcs.	EC Declaration of Conformity Module LED Industry SMD (WU-M-600-xx-yzz; WU-M-677-yzz).pdf	VDE_CERTIFICATE_0040052943_ORDER_320097_12325151.pdf
570992	WU-M-677-865	120 pcs.	EC Declaration of Conformity Module LED Industry SMD (WU-M-600-xx-yzz; WU-M-677-yzz).pdf	VDE_CERTIFICATE_0040052943_ORDER_320097_12325151.pdf

Ref. No.	Type	LED quantity	2D data	3D data

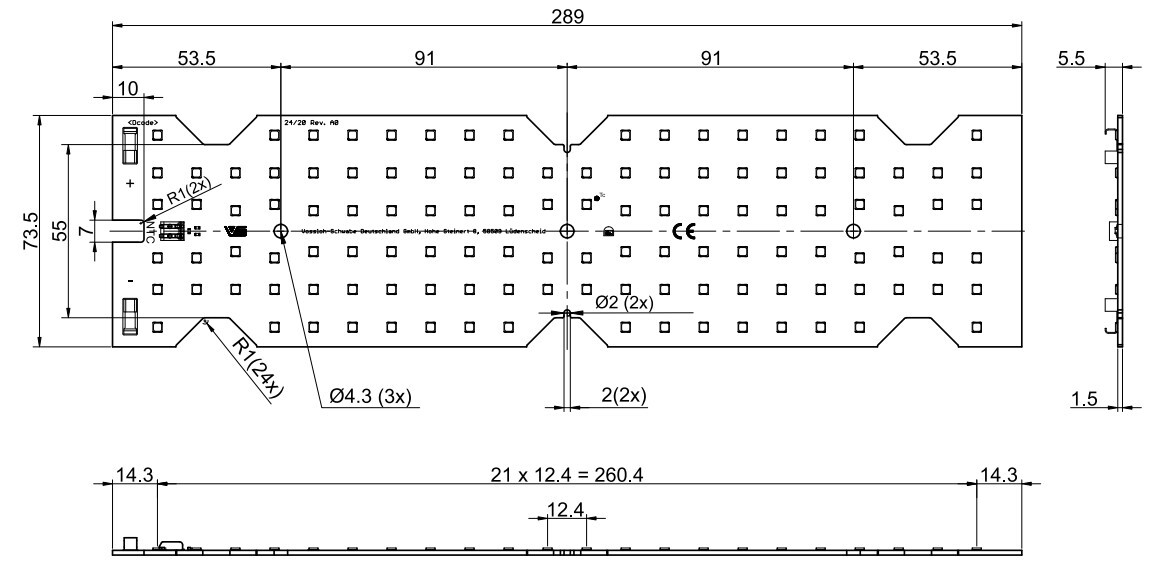

570989	WU-M-677-830	120 pcs.	2D-WU-M-677.jpg	3D_WU-M-677_with_optics_assembly.zip
570990	WU-M-677-840	120 pcs.	2D-WU-M-677.jpg	3D_WU-M-677_with_optics_assembly.zip
570991	WU-M-677-850	120 pcs.	2D-WU-M-677.jpg	3D_WU-M-677_with_optics_assembly.zip
570992	WU-M-677-865	120 pcs.	2D-WU-M-677.jpg	3D_WU-M-677_with_optics_assembly.zip

ldt und ies data
LDC_LED_Industry_W7-5_6R_Gen1_Linear_Optics_6R.zip

Ref. No.	Type
570989	WU-M-677-830
570990	WU-M-677-840
570991	WU-M-677-850
570992	WU-M-677-865

Ref. No.	Type	2D data	3D data
570989	WU-M-677-830	2D-WU-M-677.jpg	10 10 10 50 50 10 10 50 50 10 50 50 50 50 50 10 10 10 10 10 50 50 10 50 10 10 10 50 50 50 10 10 50 10 50 50 50 10 10 50 50 50 10 10 10 10 50 50 50 50 50 10 10 10
570990	WU-M-677-840	2D-WU-M-677.jpg	10 50 10 50 50 10 50 50 50 10 10 10 10 50 50 50 10 10 50 10 10 10 50 50 10 10 10 50 50 10 10 50 50 10 50 50 50 10 10 10 50 50 10 50 50 10 50 10 10 50 10 50 50 10
570991	WU-M-677-850	2D-WU-M-677.jpg	10 50 10 50 10 10 50 50 50 50 10 50 50 10 10 10 10 50 50 50 50 10 10 50 10 50 10 50 50 50 10 10 10 10 10 50 50 10 10 50 50 10 10 50 50 10 50 50 10 10 10 10 50 50
570992	WU-M-677-865	2D-WU-M-677.jpg	50 50 10 50 50 50 10 10 10 50 50 10 10 10 50 10 50 10 10 10 10 10 50 50 50 50 10 50 50 10 10 50 50 50 10 10 10 10 50 50 10 50 50 10 50 10 10 10 50 50 50 50 10 10
