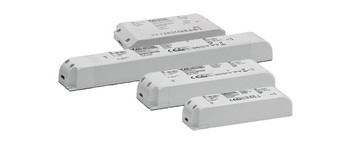

EasyLine 24 V C-L Gen.2
LED driver for installation in luminaires for 24 V systems
Compact casing design with integrated strain relief for independent operation.
Product benefits
- Product guarantee: 5 years
- SELV
- Suitable for built-in into furniture
- Very low ripple: < 3%
- With integrated cord grip for independent operation
- Long service life: up to 60.000hrs.
Choose a variant:
EasyLine 24 V C-L Gen.2
| Ref. No. | Type | Max. output power at AC operation | Family data sheet | Isolation primary - secondary | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|---|---|
| 187000 | EDXe130/24.090 | 30W | SELV | 153mm | 41mm | 32mm | 121g | |
| 187001 | EDXe160/24.091 | 60W | SELV | 115mm | 45mm | 25mm | 300g | |
| 187002 | EDXe175/24.092 | 75W | SELV | 180mm | 52mm | 30mm | 300g | |
| 187003 | EDXe1120/24.093 | 120W | SELV | 300mm | 40mm | 30mm | 420g | |
| 187004 | EDXe1180/24.094 | 180W | SELV | 345mm | 50mm | 35mm | 650g |
| Ref. No. | Type | Max. output power at AC operation | Output voltage | Output ripple (100 Hz) | SVM value | DIP switch | DALI | Resistor | LEDSet | Rotary switch | Terminal select | NFC | Bluetooth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187000 | EDXe130/24.090 | 30W | 24V | 5% | < 0.4 | No | No | No | No | No | No | No | No |
| 187001 | EDXe160/24.091 | 60W | 24V | 3% | < 0.4 | No | No | No | No | No | No | No | No |
| 187002 | EDXe175/24.092 | 75W | 24V | 5% | < 0.4 | No | No | No | No | No | No | No | No |
| 187003 | EDXe1120/24.093 | 120W | 24V | 3% | < 0.4 | No | No | No | No | No | No | No | No |
| 187004 | EDXe1180/24.094 | 180W | 24V | 3% | < 0.4 | No | No | No | No | No | No | No | No |
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187000 | EDXe130/24.090 | 30W | 220V | 240V | 198V | 264V | 50Hz | 60Hz | 150mA | 0.95 | 0.88 | 6% | no standby operation possible | ≤ 0.2W | 16A | 264µs | 250ms |
| 187001 | EDXe160/24.091 | 60W | 220V | 240V | 198V | 264V | 50Hz | 60Hz | 295mA | 0.95 | 0.895 | 9% | no standby operation possible | ≤ 0.5W | 27A | 300µs | 200ms |
| 187002 | EDXe175/24.092 | 75W | 220V | 240V | 198V | 264V | 50Hz | 60Hz | 370mA | 0.95 | 0.9 | 8% | no standby operation possible | ≤ 0.45W | 29A | 250µs | 400ms |
| 187003 | EDXe1120/24.093 | 120W | 220V | 240V | 198V | 264V | 50Hz | 60Hz | 567mA | 0.95 | 0.925 | 6% | no standby operation possible | ≤ 0.45W | 38A | 365µs | 250ms |
| 187004 | EDXe1180/24.094 | 180W | 220V | 240V | 198V | 264V | 50Hz | 60Hz | 850mA | 0.95 | 0.94 | 6% | no standby operation possible | ≤ 0.45W | 28A | 137µs | 100ms |
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187000 | EDXe130/24.090 | 30W |
| 187001 | EDXe160/24.091 | 60W |
| 187002 | EDXe175/24.092 | 75W |
| 187003 | EDXe1120/24.093 | 120W |
| 187004 | EDXe1180/24.094 | 180W |
| Ref. No. | Type | Max. output power at AC operation | Dimmable | Dimming interface DALI | DALI power supply integrated | DALI power supply switchable | PUSH | Phase cut trailing edge | Control phase | Bluetooth | Dimming interface 1–10 V | Dimming interface others | Min. dimming level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187000 | EDXe130/24.090 | 30W | No | No | No | No | No | No | No | No | No | No | 100% |
| 187001 | EDXe160/24.091 | 60W | No | No | No | No | No | No | No | No | No | 100% | |
| 187002 | EDXe175/24.092 | 75W | No | No | No | No | No | No | No | No | No | 100% | |
| 187003 | EDXe1120/24.093 | 120W | No | No | No | No | No | No | No | No | No | 100% | |
| 187004 | EDXe1180/24.094 | 180W | No | No | No | No | No | No | No | No | No | 100% |
| Ref. No. | Type | Max. output power at AC operation | Isolation primary - secondary | Protection against transient main peaks L–N | Leakage current over PE |
|---|---|---|---|---|---|
| 187000 | EDXe130/24.090 | 30W | SELV | 1kV | 0.54mA |
| 187001 | EDXe160/24.091 | 60W | SELV | 1kV | 0.3mA |
| 187002 | EDXe175/24.092 | 75W | SELV | 1kV | 0.35mA |
| 187003 | EDXe1120/24.093 | 120W | SELV | 1kV | 0.7mA |
| 187004 | EDXe1180/24.094 | 180W | SELV | 1kV | 0.4mA |
| Ref. No. | Type | Max. output power at AC operation | EU Declaration of Conformity | CB certificate | ENEC certificate |
|---|---|---|---|---|---|
| 187000 | EDXe130/24.090 | 30W | |||
| 187001 | EDXe160/24.091 | 60W | |||
| 187002 | EDXe175/24.092 | 75W | |||
| 187003 | EDXe1120/24.093 | 120W | |||
| 187004 | EDXe1180/24.094 | 180W |
| Ref. No. | Type | Max. output power at AC operation | 2D data | 3D data |
|---|---|---|---|---|
| 187000 | EDXe130/24.090 | 30W | ||
| 187001 | EDXe160/24.091 | 60W | ||
| 187002 | EDXe175/24.092 | 75W | ||
| 187003 | EDXe1120/24.093 | 120W | ||
| 187004 | EDXe1180/24.094 | 180W |
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187000 | EDXe130/24.090 | 30W |
| 187001 | EDXe160/24.091 | 60W |
| 187002 | EDXe175/24.092 | 75W |
| 187003 | EDXe1120/24.093 | 120W |
| 187004 | EDXe1180/24.094 | 180W |
