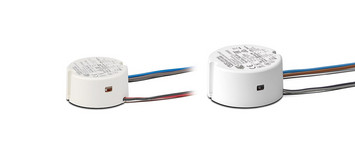

EasyLine DIP Switch R-R3
For installation in compact luminaires
Round SELV LED drivers with DIP switch for current setting.
Product benefits
- Especially space saving casing design
- Preassembled connection leads
- SELV
- Selectable output current via DIP switch
- Suitable for built-in into furniture
- Long service life: up to 100.000 hrs.
Choose a variant:
EasyLine DIP Switch R-R3
| Ref. No. | Type | Max. output power at AC operation | Family data sheet | Isolation primary - secondary | Length | Width | Height | Weight |
|---|---|---|---|---|---|---|---|---|
| 187050 | ECXe 350.433 | 14 W | SELV | 42 mm | 42 mm | 25 mm | 52 g | |
| 187051 | ECXe 500.434 | 20 W | SELV | 55 mm | 55 mm | 25 mm | 58 g | |
| 187052 | ECXe 700.435 | 28 W | SELV | 55 mm | 55 mm | 25 mm | 85 g |
| Ref. No. | Type | Max. output power at AC operation | Output current | Min. output voltage | Max. output voltage | Output ripple (100 Hz) | Output current tolerance – | Output current tolerance + |
|---|---|---|---|---|---|---|---|---|
| 187050 | ECXe 350.433 | 14 W |
27 V
27 V
|
40 V
40 V
|
2 % | -5 % | 5 % | |
| 187051 | ECXe 500.434 | 20 W |
30 V
30 V
|
40 V
40 V
|
3 % | -5 % | 5 % | |
| 187052 | ECXe 700.435 | 28 W |
30 V
30 V
|
40 V
40 V
|
2 % | -5 % | 5 % |
| Ref. No. | Type | Max. output power at AC operation | Min. voltage | Max. voltage | Min. input voltage AC | Max. input voltage AC | Min. mains frequency | Max. mains frequency | Input current at 230 V AC with max. load | Power factor at full load (230 V) | Efficiency at full load (230 V) | THD at full load (230 V) | Standby power | No-load standby power | Inrush current | Inrush current time at 50% Ipeak | Time to light on in AC operation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 187050 | ECXe 350.433 | 14 W | 220 V | 240 V | 198 V | 264 V | 50 Hz | 60 Hz | 73 mA | 0.95 | 0.87 | 10 % | no standby operation possible | no load operation not intended | 10 A | 139 µs | 120 ms |
| 187051 | ECXe 500.434 | 20 W | 220 V | 240 V | 198 V | 264 V | 50 Hz | 60 Hz | 102 mA | 0.97 | 0.9 | 5 % | no standby operation possible | no load operation not intended | 15 A | 164 µs | 50 ms |
| 187052 | ECXe 700.435 | 28 W | 220 V | 240 V | 198 V | 264 V | 50 Hz | 60 Hz | 139 mA | 0.98 | 0.9 | 6 % | no standby operation possible | no load operation not intended | 15 A | 158 µs | 40 ms |
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187050 | ECXe 350.433 | 14 W |
| 187051 | ECXe 500.434 | 20 W |
| 187052 | ECXe 700.435 | 28 W |
| Ref. No. | Type | Max. output power at AC operation | Dimmable | DALI power supply integrated | DALI power supply switchable | Min. dimming level | Max. dimming level |
|---|---|---|---|---|---|---|---|
| 187050 | ECXe 350.433 | 14 W | No | No | No | 100 % | 100 % |
| 187051 | ECXe 500.434 | 20 W | No | No | 100 % | 100 % | |
| 187052 | ECXe 700.435 | 28 W | No | No | 100 % | 100 % |
| Ref. No. | Type | Max. output power at AC operation | Isolation primary - secondary | Open circuit voltage (Umax.) | Protection against transient main peaks L–N |
|---|---|---|---|---|---|
| 187050 | ECXe 350.433 | 14 W | SELV | 60 V | 1 kV |
| 187051 | ECXe 500.434 | 20 W | SELV | 60 V | 1 kV |
| 187052 | ECXe 700.435 | 28 W | SELV | 60 V | 1 kV |
| Ref. No. | Type | Max. output power at AC operation | EU Declaration of Conformity | CB certificate | ENEC certificate | CCC certificate |
|---|---|---|---|---|---|---|
| 187050 | ECXe 350.433 | 14 W | ||||
| 187051 | ECXe 500.434 | 20 W | ||||
| 187052 | ECXe 700.435 | 28 W |
| Ref. No. | Type | Max. output power at AC operation | 2D data | 3D data |
|---|---|---|---|---|
| 187050 | ECXe 350.433 | 14 W | ||
| 187051 | ECXe 500.434 | 20 W | ||
| 187052 | ECXe 700.435 | 28 W |
| Ref. No. | Type | Max. output power at AC operation |
|---|---|---|
| 187050 | ECXe 350.433 | 14 W |
| 187051 | ECXe 500.434 | 20 W |
| 187052 | ECXe 700.435 | 28 W |
| Ref. No. | Type | ||
|---|---|---|---|
| 187050 | ECXe 350.433 | ||
| 187051 | ECXe 500.434 | ||
| 187052 | ECXe 700.435 |
