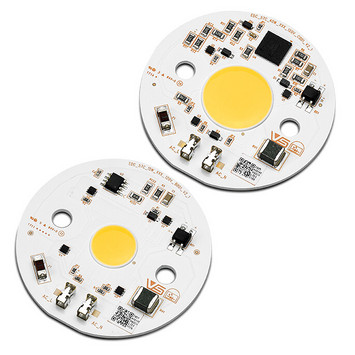

ReadyLine COB 120 V

LED build-in module with on-board plug-in terminal contact for luminaires

LED built-in module for integration into luminaires with on-board push-in connector.

Product benefits

  • Compact and slim design
  • Dimmable
  • Driver on board technology
  • ZHAGA compliant component
  • Long service life: up to 50.000 hrs.

Choose a variant:

ReadyLine COB 120 V, Ø 38 mm

Ref. No. Type Chip quantity Family data sheet Light emitting surface (LES) Ø Diameter Height Energy efficiency LED technology LED colour Correlated colour temperature Beam angle IP protection
563996 EDC38C_4W827_120A_VS4 8 pcs. 10 mm 38 4.7 mm A+ COB warm white 2700 K 120° 20
563997 EDC38C_4W830_120A_VS4 8 pcs. 10 mm 38 4.7 mm A+ COB warm white 3000 K 120° 20
563998 EDC38C_4W835_120A_VS4 8 pcs. 10 mm 38 4.7 mm A+ COB neutral white 3500 K 120° 20
563999 EDC38C_4W840_120A_VS4 8 pcs. 10 mm 38 4.7 mm A+ COB neutral white 4000 K 120° 20
564000 EDC38C_4W850_120A_VS4 8 pcs. 10 mm 38 4.7 mm A+ COB cool white 5000 K 120° 20
564001 EDC38C_4W927_120A_VS4 8 pcs. 10 mm 38 4.7 mm A+ COB warm white 2700 K 120° 20
564002 EDC38C_4W930_120A_VS4 8 pcs. 10 mm 38 4.7 mm A+ COB warm white 3000 K 120° 20
564003 EDC38C_4W935_120A_VS4 8 pcs. 10 mm 38 4.7 mm A+ COB neutral white 3500 K 120° 20
564004 EDC38C_4W940_120A_VS4 8 pcs. 10 mm 38 4.7 mm A+ COB neutral white 4000 K 120° 20
564005 EDC38C_4W950_120A_VS4 8 pcs. 10 mm 38 4.7 mm A+ COB cool white 5000 K 120° 20
564006 EDC38C_6W827_120A_VS4 12 pcs. 10 mm 38 4.7 mm A+ COB warm white 2700 K 120° 20
564007 EDC38C_6W830_120A_VS4 12 pcs. 10 mm 38 4.7 mm A+ COB warm white 3000 K 120° 20
564008 EDC38C_6W835_120A_VS4 12 pcs. 10 mm 38 4.7 mm A+ COB neutral white 3500 K 120° 20
564009 EDC38C_6W840_120A_VS4 12 pcs. 10 mm 38 4.7 mm A+ COB neutral white 4000 K 120° 20
564010 EDC38C_6W850_120A_VS4 12 pcs. 10 mm 38 4.7 mm A+ COB cool white 5000 K 120° 20
564011 EDC38C_6W927_120A_VS4 12 pcs. 10 mm 38 4.7 mm A+ COB warm white 2700 K 120° 20
564012 EDC38C_6W930_120A_VS4 12 pcs. 10 mm 38 4.7 mm A+ COB warm white 3000 K 120° 20
564013 EDC38C_6W935_120A_VS4 12 pcs. 10 mm 38 4.7 mm A+ COB neutral white 3500 K 120° 20
564014 EDC38C_6W940_120A_VS4 12 pcs. 10 mm 38 4.7 mm A+ COB neutral white 4000 K 120° 20
564015 EDC38C_6W950_120A_VS4 12 pcs. 10 mm 38 4.7 mm A+ COB cool white 5000 K 120° 20
564016 EDC38C_8W827_120A_VS4 16 pcs. 10 mm 38 4.7 mm A+ COB warm white 2700 K 120° 20
564017 EDC38C_8W830_120A_VS4 16 pcs. 10 mm 38 4.7 mm A+ COB warm white 3000 K 120° 20
564018 EDC38C_8W835_120A_VS4 16 pcs. 10 mm 38 4.7 mm A+ COB neutral white 3500 K 120° 20
564019 EDC38C_8W840_120A_VS4 16 pcs. 10 mm 38 4.7 mm A+ COB neutral white 4000 K 120° 20
564020 EDC38C_8W850_120A_VS4 16 pcs. 10 mm 38 4.7 mm A+ COB cool white 5000 K 120° 20
564021 EDC38C_8W927_120A_VS4 16 pcs. 10 mm 38 4.7 mm A+ COB warm white 2700 K 120° 20
564022 EDC38C_8W930_120A_VS4 16 pcs. 10 mm 38 4.7 mm A+ COB warm white 3000 K 120° 20
564023 EDC38C_8W935_120A_VS4 16 pcs. 10 mm 38 4.7 mm A+ COB neutral white 3500 K 120° 20
564024 EDC38C_8W940_120A_VS4 16 pcs. 10 mm 38 4.7 mm A+ COB neutral white 4000 K 120° 20
564025 EDC38C_8W950_120A_VS4 16 pcs. 10 mm 38 4.7 mm A+ COB cool white 5000 K 120° 20
Ref. No. Type Chip quantity Typ. power consumption Typ. supply voltage AC Operating frequency Power factor at full load (230 V)
563996 EDC38C_4W827_120A_VS4 8 pcs.
  • 4 W
  • 120 V
  • 50 Hz
 0.95
563997 EDC38C_4W830_120A_VS4 8 pcs.
  • 4 W
  • 120 V
  • 50 Hz
 0.95
563998 EDC38C_4W835_120A_VS4 8 pcs.
  • 4 W
  • 120 V
  • 50 Hz
 0.95
563999 EDC38C_4W840_120A_VS4 8 pcs.
  • 4 W
  • 120 V
  • 50 Hz
 0.95
564000 EDC38C_4W850_120A_VS4 8 pcs.
  • 4 W
  • 120 V
  • 50 Hz
 0.95
564001 EDC38C_4W927_120A_VS4 8 pcs.
  • 4 W
  • 120 V
  • 50 Hz
 0.95
564002 EDC38C_4W930_120A_VS4 8 pcs.
  • 4 W
  • 120 V
  • 50 Hz
 0.95
564003 EDC38C_4W935_120A_VS4 8 pcs.
  • 4 W
  • 120 V
  • 50 Hz
 0.95
564004 EDC38C_4W940_120A_VS4 8 pcs.
  • 4 W
  • 120 V
  • 50 Hz
 0.95
564005 EDC38C_4W950_120A_VS4 8 pcs.
  • 4 W
  • 120 V
  • 50 Hz
 0.95
564006 EDC38C_6W827_120A_VS4 12 pcs.
  • 6 W
  • 120 V
  • 50 Hz
 0.95
564007 EDC38C_6W830_120A_VS4 12 pcs.
  • 6 W
  • 120 V
  • 50 Hz
 0.95
564008 EDC38C_6W835_120A_VS4 12 pcs.
  • 6 W
  • 120 V
  • 50 Hz
 0.95
564009 EDC38C_6W840_120A_VS4 12 pcs.
  • 6 W
  • 120 V
  • 50 Hz
 0.95
564010 EDC38C_6W850_120A_VS4 12 pcs.
  • 6 W
  • 120 V
  • 50 Hz
 0.95
564011 EDC38C_6W927_120A_VS4 12 pcs.
  • 6 W
  • 120 V
  • 50 Hz
 0.95
564012 EDC38C_6W930_120A_VS4 12 pcs.
  • 6 W
  • 120 V
  • 50 Hz
 0.95
564013 EDC38C_6W935_120A_VS4 12 pcs.
  • 6 W
  • 120 V
  • 50 Hz
 0.95
564014 EDC38C_6W940_120A_VS4 12 pcs.
  • 6 W
  • 120 V
  • 50 Hz
 0.95
564015 EDC38C_6W950_120A_VS4 12 pcs.
  • 6 W
  • 120 V
  • 50 Hz
 0.95
564016 EDC38C_8W827_120A_VS4 16 pcs.
  • 8 W
  • 120 V
  • 50 Hz
 0.95
564017 EDC38C_8W830_120A_VS4 16 pcs.
  • 8 W
  • 120 V
  • 50 Hz
 0.95
564018 EDC38C_8W835_120A_VS4 16 pcs.
  • 8 W
  • 120 V
  • 50 Hz
 0.95
564019 EDC38C_8W840_120A_VS4 16 pcs.
  • 8 W
  • 120 V
  • 50 Hz
 0.95
564020 EDC38C_8W850_120A_VS4 16 pcs.
  • 8 W
  • 120 V
  • 50 Hz
 0.95
564021 EDC38C_8W927_120A_VS4 16 pcs.
  • 8 W
  • 120 V
  • 50 Hz
 0.95
564022 EDC38C_8W930_120A_VS4 16 pcs.
  • 8 W
  • 120 V
  • 50 Hz
 0.95
564023 EDC38C_8W935_120A_VS4 16 pcs.
  • 8 W
  • 120 V
  • 50 Hz
 0.95
564024 EDC38C_8W940_120A_VS4 16 pcs.
  • 8 W
  • 120 V
  • 50 Hz
 0.95
564025 EDC38C_8W950_120A_VS4 16 pcs.
  • 8 W
  • 120 V
  • 50 Hz
 0.95
Ref. No. Type Chip quantity Typ. luminous flux at If Typ. efficiency at If Typ. CRI (Ra)
563996 EDC38C_4W827_120A_VS4 8 pcs.
  • 353 lm
  • 88 lm/W
  • 80
563997 EDC38C_4W830_120A_VS4 8 pcs.
  • 380 lm
  • 95 lm/W
  • 80
563998 EDC38C_4W835_120A_VS4 8 pcs.
  • 388 lm
  • 97 lm/W
  • 80
563999 EDC38C_4W840_120A_VS4 8 pcs.
  • 395 lm
  • 99 lm/W
  • 80
564000 EDC38C_4W850_120A_VS4 8 pcs.
  • 407 lm
  • 102 lm/W
  • 80
564001 EDC38C_4W927_120A_VS4 8 pcs.
  • 311 lm
  • 78 lm/W
  • 90
564002 EDC38C_4W930_120A_VS4 8 pcs.
  • 334 lm
  • 84 lm/W
  • 90
564003 EDC38C_4W935_120A_VS4 8 pcs.
  • 341 lm
  • 85 lm/W
  • 90
564004 EDC38C_4W940_120A_VS4 8 pcs.
  • 348 lm
  • 87 lm/W
  • 90
564005 EDC38C_4W950_120A_VS4 8 pcs.
  • 358 lm
  • 89 lm/W
  • 90
564006 EDC38C_6W827_120A_VS4 12 pcs.
  • 530 lm
  • 88 lm/W
  • 80
564007 EDC38C_6W830_120A_VS4 12 pcs.
  • 570 lm
  • 95 lm/W
  • 80
564008 EDC38C_6W835_120A_VS4 12 pcs.
  • 581 lm
  • 97 lm/W
  • 80
564009 EDC38C_6W840_120A_VS4 12 pcs.
  • 593 lm
  • 99 lm/W
  • 80
564010 EDC38C_6W850_120A_VS4 12 pcs.
  • 610 lm
  • 102 lm/W
  • 80
564011 EDC38C_6W927_120A_VS4 12 pcs.
  • 466 lm
  • 78 lm/W
  • 90
564012 EDC38C_6W930_120A_VS4 12 pcs.
  • 502 lm
  • 84 lm/W
  • 90
564013 EDC38C_6W935_120A_VS4 12 pcs.
  • 512 lm
  • 85 lm/W
  • 90
564014 EDC38C_6W940_120A_VS4 12 pcs.
  • 522 lm
  • 87 lm/W
  • 90
564015 EDC38C_6W950_120A_VS4 12 pcs.
  • 537 lm
  • 89 lm/W
  • 90
564016 EDC38C_8W827_120A_VS4 16 pcs.
  • 707 lm
  • 88 lm/W
  • 80
564017 EDC38C_8W830_120A_VS4 16 pcs.
  • 760 lm
  • 95 lm/W
  • 80
564018 EDC38C_8W835_120A_VS4 16 pcs.
  • 775 lm
  • 97 lm/W
  • 80
564019 EDC38C_8W840_120A_VS4 16 pcs.
  • 790 lm
  • 99 lm/W
  • 80
564020 EDC38C_8W850_120A_VS4 16 pcs.
  • 813 lm
  • 102 lm/W
  • 80
564021 EDC38C_8W927_120A_VS4 16 pcs.
  • 622 lm
  • 78 lm/W
  • 90
564022 EDC38C_8W930_120A_VS4 16 pcs.
  • 669 lm
  • 84 lm/W
  • 90
564023 EDC38C_8W935_120A_VS4 16 pcs.
  • 682 lm
  • 85 lm/W
  • 90
564024 EDC38C_8W940_120A_VS4 16 pcs.
  • 696 lm
  • 87 lm/W
  • 90
564025 EDC38C_8W950_120A_VS4 16 pcs.
  • 716 lm
  • 89 lm/W
  • 90
Ref. No. Type Chip quantity
563996 EDC38C_4W827_120A_VS4 8 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
563997 EDC38C_4W830_120A_VS4 8 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
563998 EDC38C_4W835_120A_VS4 8 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
563999 EDC38C_4W840_120A_VS4 8 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564000 EDC38C_4W850_120A_VS4 8 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564001 EDC38C_4W927_120A_VS4 8 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564002 EDC38C_4W930_120A_VS4 8 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564003 EDC38C_4W935_120A_VS4 8 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564004 EDC38C_4W940_120A_VS4 8 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564005 EDC38C_4W950_120A_VS4 8 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564006 EDC38C_6W827_120A_VS4 12 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564007 EDC38C_6W830_120A_VS4 12 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564008 EDC38C_6W835_120A_VS4 12 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564009 EDC38C_6W840_120A_VS4 12 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564010 EDC38C_6W850_120A_VS4 12 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564011 EDC38C_6W927_120A_VS4 12 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564012 EDC38C_6W930_120A_VS4 12 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564013 EDC38C_6W935_120A_VS4 12 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564014 EDC38C_6W940_120A_VS4 12 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564015 EDC38C_6W950_120A_VS4 12 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564016 EDC38C_8W827_120A_VS4 16 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564017 EDC38C_8W830_120A_VS4 16 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564018 EDC38C_8W835_120A_VS4 16 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564019 EDC38C_8W840_120A_VS4 16 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564020 EDC38C_8W850_120A_VS4 16 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564021 EDC38C_8W927_120A_VS4 16 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564022 EDC38C_8W930_120A_VS4 16 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564023 EDC38C_8W935_120A_VS4 16 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564024 EDC38C_8W940_120A_VS4 16 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564025 EDC38C_8W950_120A_VS4 16 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
Ref. No. Type Chip quantity
563996 EDC38C_4W827_120A_VS4 8 pcs.
563997 EDC38C_4W830_120A_VS4 8 pcs.
563998 EDC38C_4W835_120A_VS4 8 pcs.
563999 EDC38C_4W840_120A_VS4 8 pcs.
564000 EDC38C_4W850_120A_VS4 8 pcs.
564001 EDC38C_4W927_120A_VS4 8 pcs.
564002 EDC38C_4W930_120A_VS4 8 pcs.
564003 EDC38C_4W935_120A_VS4 8 pcs.
564004 EDC38C_4W940_120A_VS4 8 pcs.
564005 EDC38C_4W950_120A_VS4 8 pcs.
564006 EDC38C_6W827_120A_VS4 12 pcs.
564007 EDC38C_6W830_120A_VS4 12 pcs.
564008 EDC38C_6W835_120A_VS4 12 pcs.
564009 EDC38C_6W840_120A_VS4 12 pcs.
564010 EDC38C_6W850_120A_VS4 12 pcs.
564011 EDC38C_6W927_120A_VS4 12 pcs.
564012 EDC38C_6W930_120A_VS4 12 pcs.
564013 EDC38C_6W935_120A_VS4 12 pcs.
564014 EDC38C_6W940_120A_VS4 12 pcs.
564015 EDC38C_6W950_120A_VS4 12 pcs.
564016 EDC38C_8W827_120A_VS4 16 pcs.
564017 EDC38C_8W830_120A_VS4 16 pcs.
564018 EDC38C_8W835_120A_VS4 16 pcs.
564019 EDC38C_8W840_120A_VS4 16 pcs.
564020 EDC38C_8W850_120A_VS4 16 pcs.
564021 EDC38C_8W927_120A_VS4 16 pcs.
564022 EDC38C_8W930_120A_VS4 16 pcs.
564023 EDC38C_8W935_120A_VS4 16 pcs.
564024 EDC38C_8W940_120A_VS4 16 pcs.
564025 EDC38C_8W950_120A_VS4 16 pcs.
Ref. No. Type Chip quantity 2D data 3D data
563996 EDC38C_4W827_120A_VS4 8 pcs.
563997 EDC38C_4W830_120A_VS4 8 pcs.
563998 EDC38C_4W835_120A_VS4 8 pcs.
563999 EDC38C_4W840_120A_VS4 8 pcs.
564000 EDC38C_4W850_120A_VS4 8 pcs.
564001 EDC38C_4W927_120A_VS4 8 pcs.
564002 EDC38C_4W930_120A_VS4 8 pcs.
564003 EDC38C_4W935_120A_VS4 8 pcs.
564004 EDC38C_4W940_120A_VS4 8 pcs.
564005 EDC38C_4W950_120A_VS4 8 pcs.
564006 EDC38C_6W827_120A_VS4 12 pcs.
564007 EDC38C_6W830_120A_VS4 12 pcs.
564008 EDC38C_6W835_120A_VS4 12 pcs.
564009 EDC38C_6W840_120A_VS4 12 pcs.
564010 EDC38C_6W850_120A_VS4 12 pcs.
564011 EDC38C_6W927_120A_VS4 12 pcs.
564012 EDC38C_6W930_120A_VS4 12 pcs.
564013 EDC38C_6W935_120A_VS4 12 pcs.
564014 EDC38C_6W940_120A_VS4 12 pcs.
564015 EDC38C_6W950_120A_VS4 12 pcs.
564016 EDC38C_8W827_120A_VS4 16 pcs.
564017 EDC38C_8W830_120A_VS4 16 pcs.
564018 EDC38C_8W835_120A_VS4 16 pcs.
564019 EDC38C_8W840_120A_VS4 16 pcs.
564020 EDC38C_8W850_120A_VS4 16 pcs.
564021 EDC38C_8W927_120A_VS4 16 pcs.
564022 EDC38C_8W930_120A_VS4 16 pcs.
564023 EDC38C_8W935_120A_VS4 16 pcs.
564024 EDC38C_8W940_120A_VS4 16 pcs.
564025 EDC38C_8W950_120A_VS4 16 pcs.
Ref. No. Type
563996 EDC38C_4W827_120A_VS4
563997 EDC38C_4W830_120A_VS4
563998 EDC38C_4W835_120A_VS4
563999 EDC38C_4W840_120A_VS4
564000 EDC38C_4W850_120A_VS4
564001 EDC38C_4W927_120A_VS4
564002 EDC38C_4W930_120A_VS4
564003 EDC38C_4W935_120A_VS4
564004 EDC38C_4W940_120A_VS4
564005 EDC38C_4W950_120A_VS4
564006 EDC38C_6W827_120A_VS4
564007 EDC38C_6W830_120A_VS4
564008 EDC38C_6W835_120A_VS4
564009 EDC38C_6W840_120A_VS4
564010 EDC38C_6W850_120A_VS4
564011 EDC38C_6W927_120A_VS4
564012 EDC38C_6W930_120A_VS4
564013 EDC38C_6W935_120A_VS4
564014 EDC38C_6W940_120A_VS4
564015 EDC38C_6W950_120A_VS4
564016 EDC38C_8W827_120A_VS4
564017 EDC38C_8W830_120A_VS4
564018 EDC38C_8W835_120A_VS4
564019 EDC38C_8W840_120A_VS4
564020 EDC38C_8W850_120A_VS4
564021 EDC38C_8W927_120A_VS4
564022 EDC38C_8W930_120A_VS4
564023 EDC38C_8W935_120A_VS4
564024 EDC38C_8W940_120A_VS4
564025 EDC38C_8W950_120A_VS4
Ref. No. Type 2D data 3D data
563996 EDC38C_4W827_120A_VS4
  • 50
563997 EDC38C_4W830_120A_VS4
  • 50
563998 EDC38C_4W835_120A_VS4
  • 50
563999 EDC38C_4W840_120A_VS4
  • 50
564000 EDC38C_4W850_120A_VS4
  • 50
564001 EDC38C_4W927_120A_VS4
  • 50
564002 EDC38C_4W930_120A_VS4
  • 50
564003 EDC38C_4W935_120A_VS4
  • 50
564004 EDC38C_4W940_120A_VS4
  • 50
564005 EDC38C_4W950_120A_VS4
  • 50
564006 EDC38C_6W827_120A_VS4
  • 50
564007 EDC38C_6W830_120A_VS4
  • 50
564008 EDC38C_6W835_120A_VS4
  • 50
564009 EDC38C_6W840_120A_VS4
  • 50
564010 EDC38C_6W850_120A_VS4
  • 50
564011 EDC38C_6W927_120A_VS4
  • 50
564012 EDC38C_6W930_120A_VS4
  • 50
564013 EDC38C_6W935_120A_VS4
  • 50
564014 EDC38C_6W940_120A_VS4
  • 50
564015 EDC38C_6W950_120A_VS4
  • 50
564016 EDC38C_8W827_120A_VS4
  • 50
564017 EDC38C_8W830_120A_VS4
  • 50
564018 EDC38C_8W835_120A_VS4
  • 50
564019 EDC38C_8W840_120A_VS4
  • 50
564020 EDC38C_8W850_120A_VS4
  • 50
564021 EDC38C_8W927_120A_VS4
  • 50
564022 EDC38C_8W930_120A_VS4
  • 50
564023 EDC38C_8W935_120A_VS4
  • 50
564024 EDC38C_8W940_120A_VS4
  • 50
564025 EDC38C_8W950_120A_VS4
  • 50

ReadyLine COB 120 V, Ø 57 mm

Ref. No. Type Chip quantity Family data sheet Light emitting surface (LES) Ø Diameter Height Energy efficiency LED technology LED colour Correlated colour temperature Beam angle IP protection
564057 EDC57C_10W827_120A_VS4 20 pcs. 14 mm 57 4.7 mm A+ COB warm white 2700 K 120° 20
564058 EDC57C_10W830_120A_VS4 20 pcs. 14 mm 57 4.7 mm A+ COB warm white 3000 K 120° 20
564059 EDC57C_10W835_120A_VS4 20 pcs. 14 mm 57 4.7 mm A+ COB neutral white 3500 K 120° 20
564060 EDC57C_10W840_120A_VS4 20 pcs. 14 mm 57 4.7 mm A+ COB neutral white 4000 K 120° 20
564061 EDC57C_10W850_120A_VS4 20 pcs. 14 mm 57 4.7 mm A+ COB cool white 5000 K 120° 20
564062 EDC57C_10W927_120A_VS4 20 pcs. 14 mm 57 4.7 mm A+ COB warm white 2700 K 120° 20
564063 EDC57C_10W930_120A_VS4 20 pcs. 14 mm 57 4.7 mm A+ COB warm white 3000 K 120° 20
564064 EDC57C_10W935_120A_VS4 20 pcs. 14 mm 57 4.7 mm A+ COB neutral white 3500 K 120° 20
564065 EDC57C_10W940_120A_VS4 20 pcs. 14 mm 57 4.7 mm A+ COB neutral white 4000 K 120° 20
564066 EDC57C_10W950_120A_VS4 20 pcs. 14 mm 57 4.7 mm A+ COB cool white 5000 K 120° 20
564067 EDC57C_15W827_120A_VS4 29 pcs. 14 mm 57 4.7 mm A+ COB warm white 2700 K 120° 20
564068 EDC57C_15W830_120A_VS4 29 pcs. 14 mm 57 4.7 mm A+ COB warm white 3000 K 120° 20
564069 EDC57C_15W835_120A_VS4 29 pcs. 14 mm 57 4.7 mm A+ COB neutral white 3500 K 120° 20
564070 EDC57C_15W840_120A_VS4 29 pcs. 14 mm 57 4.7 mm A+ COB neutral white 4000 K 120° 20
564071 EDC57C_15W850_120A_VS4 29 pcs. 14 mm 57 4.7 mm A+ COB cool white 5000 K 120° 20
564072 EDC57C_15W927_120A_VS4 29 pcs. 14 mm 57 4.7 mm A+ COB warm white 2700 K 120° 20
564073 EDC57C_15W930_120A_VS4 29 pcs. 14 mm 57 4.7 mm A+ COB warm white 3000 K 120° 20
564074 EDC57C_15W935_120A_VS4 29 pcs. 14 mm 57 4.7 mm A+ COB neutral white 3500 K 120° 20
564075 EDC57C_15W940_120A_VS4 29 pcs. 14 mm 57 4.7 mm A+ COB neutral white 4000 K 120° 20
564076 EDC57C_15W950_120A_VS4 29 pcs. 14 mm 57 4.7 mm A+ COB cool white 5000 K 120° 20
564077 EDC57C_20W827_120A_VS4 39 pcs. 14 mm 57 4.7 mm A+ COB warm white 2700 K 120° 20
564078 EDC57C_20W830_120A_VS4 39 pcs. 14 mm 57 4.7 mm A+ COB warm white 3000 K 120° 20
564079 EDC57C_20W835_120A_VS4 39 pcs. 14 mm 57 4.7 mm A+ COB neutral white 3500 K 120° 20
564080 EDC57C_20W840_120A_VS4 39 pcs. 14 mm 57 4.7 mm A+ COB neutral white 4000 K 120° 20
564081 EDC57C_20W850_120A_VS4 39 pcs. 14 mm 57 4.7 mm A+ COB cool white 5000 K 120° 20
564082 EDC57C_20W927_120A_VS4 39 pcs. 14 mm 57 4.7 mm A+ COB warm white 2700 K 120° 20
564083 EDC57C_20W930_120A_VS4 39 pcs. 14 mm 57 4.7 mm A+ COB warm white 3000 K 120° 20
564084 EDC57C_20W935_120A_VS4 39 pcs. 14 mm 57 4.7 mm A+ COB neutral white 3500 K 120° 20
564085 EDC57C_20W940_120A_VS4 39 pcs. 14 mm 57 4.7 mm A+ COB neutral white 4000 K 120° 20
564086 EDC57C_20W950_120A_VS4 39 pcs. 14 mm 57 4.7 mm A+ COB cool white 5000 K 120° 20
564087 EDC57C_30W827_120A_VS4 55 pcs. 21 mm 57 4.7 mm A+ COB warm white 2700 K 120° 20
564088 EDC57C_30W830_120A_VS4 55 pcs. 21 mm 57 4.7 mm A+ COB warm white 3000 K 120° 20
564089 EDC57C_30W835_120A_VS4 55 pcs. 21 mm 57 4.7 mm A+ COB neutral white 3500 K 120° 20
564090 EDC57C_30W840_120A_VS4 55 pcs. 21 mm 57 4.7 mm A+ COB neutral white 4000 K 120° 20
564091 EDC57C_30W850_120A_VS4 55 pcs. 21 mm 57 4.7 mm A+ COB cool white 5000 K 120° 20
564092 EDC57C_30W927_120A_VS4 55 pcs. 21 mm 57 4.7 mm A+ COB warm white 2700 K 120° 20
564093 EDC57C_30W930_120A_VS4 55 pcs. 21 mm 57 4.7 mm A+ COB warm white 3000 K 120° 20
564094 EDC57C_30W935_120A_VS4 55 pcs. 21 mm 57 4.7 mm A+ COB neutral white 3500 K 120° 20
564095 EDC57C_30W940_120A_VS4 55 pcs. 21 mm 57 4.7 mm A+ COB neutral white 4000 K 120° 20
564096 EDC57C_30W950_120A_VS4 55 pcs. 21 mm 57 4.7 mm A+ COB cool white 5000 K 120° 20
564097 EDC57C_40W827_120A_VS4 72 pcs. 21 mm 57 4.7 mm A+ COB warm white 2700 K 120° 20
564098 EDC57C_40W830_120A_VS4 72 pcs. 21 mm 57 4.7 mm A+ COB warm white 3000 K 120° 20
564099 EDC57C_40W835_120A_VS4 72 pcs. 21 mm 57 4.7 mm A+ COB neutral white 3500 K 120° 20
564100 EDC57C_40W840_120A_VS4 72 pcs. 21 mm 57 4.7 mm A+ COB neutral white 4000 K 120° 20
564101 EDC57C_40W850_120A_VS4 72 pcs. 21 mm 57 4.7 mm A+ COB cool white 5000 K 120° 20
564102 EDC57C_40W927_120A_VS4 72 pcs. 21 mm 57 4.7 mm A+ COB warm white 2700 K 120° 20
564103 EDC57C_40W930_120A_VS4 72 pcs. 21 mm 57 4.7 mm A+ COB warm white 3000 K 120° 20
564104 EDC57C_40W935_120A_VS4 72 pcs. 21 mm 57 4.7 mm A+ COB neutral white 3500 K 120° 20
564105 EDC57C_40W940_120A_VS4 72 pcs. 21 mm 57 4.7 mm A+ COB neutral white 4000 K 120° 20
564106 EDC57C_40W950_120A_VS4 72 pcs. 21 mm 57 4.7 mm A+ COB cool white 5000 K 120° 20
Ref. No. Type Chip quantity Typ. power consumption Typ. supply voltage AC Operating frequency Power factor at full load (230 V)
564057 EDC57C_10W827_120A_VS4 20 pcs.
  • 10 W
  • 120 V
  • 50 Hz
 0.95
564058 EDC57C_10W830_120A_VS4 20 pcs.
  • 10 W
  • 120 V
  • 50 Hz
 0.95
564059 EDC57C_10W835_120A_VS4 20 pcs.
  • 10 W
  • 120 V
  • 50 Hz
 0.95
564060 EDC57C_10W840_120A_VS4 20 pcs.
  • 10 W
  • 120 V
  • 50 Hz
 0.95
564061 EDC57C_10W850_120A_VS4 20 pcs.
  • 10 W
  • 120 V
  • 50 Hz
 0.95
564062 EDC57C_10W927_120A_VS4 20 pcs.
  • 10 W
  • 120 V
  • 50 Hz
 0.95
564063 EDC57C_10W930_120A_VS4 20 pcs.
  • 10 W
  • 120 V
  • 50 Hz
 0.95
564064 EDC57C_10W935_120A_VS4 20 pcs.
  • 10 W
  • 120 V
  • 50 Hz
 0.95
564065 EDC57C_10W940_120A_VS4 20 pcs.
  • 10 W
  • 120 V
  • 50 Hz
 0.95
564066 EDC57C_10W950_120A_VS4 20 pcs.
  • 10 W
  • 120 V
  • 50 Hz
 0.95
564067 EDC57C_15W827_120A_VS4 29 pcs.
  • 15 W
  • 120 V
  • 50 Hz
 0.95
564068 EDC57C_15W830_120A_VS4 29 pcs.
  • 15 W
  • 120 V
  • 50 Hz
 0.95
564069 EDC57C_15W835_120A_VS4 29 pcs.
  • 15 W
  • 120 V
  • 50 Hz
 0.95
564070 EDC57C_15W840_120A_VS4 29 pcs.
  • 15 W
  • 120 V
  • 50 Hz
 0.95
564071 EDC57C_15W850_120A_VS4 29 pcs.
  • 15 W
  • 120 V
  • 50 Hz
 0.95
564072 EDC57C_15W927_120A_VS4 29 pcs.
  • 15 W
  • 120 V
  • 50 Hz
 0.95
564073 EDC57C_15W930_120A_VS4 29 pcs.
  • 15 W
  • 120 V
  • 50 Hz
 0.95
564074 EDC57C_15W935_120A_VS4 29 pcs.
  • 15 W
  • 120 V
  • 50 Hz
 0.95
564075 EDC57C_15W940_120A_VS4 29 pcs.
  • 15 W
  • 120 V
  • 50 Hz
 0.95
564076 EDC57C_15W950_120A_VS4 29 pcs.
  • 15 W
  • 120 V
  • 50 Hz
 0.95
564077 EDC57C_20W827_120A_VS4 39 pcs.
  • 20 W
  • 120 V
  • 50 Hz
 0.95
564078 EDC57C_20W830_120A_VS4 39 pcs.
  • 20 W
  • 120 V
  • 50 Hz
 0.95
564079 EDC57C_20W835_120A_VS4 39 pcs.
  • 20 W
  • 120 V
  • 50 Hz
 0.95
564080 EDC57C_20W840_120A_VS4 39 pcs.
  • 20 W
  • 120 V
  • 50 Hz
 0.95
564081 EDC57C_20W850_120A_VS4 39 pcs.
  • 20 W
  • 120 V
  • 50 Hz
 0.95
564082 EDC57C_20W927_120A_VS4 39 pcs.
  • 20 W
  • 120 V
  • 50 Hz
 0.95
564083 EDC57C_20W930_120A_VS4 39 pcs.
  • 20 W
  • 120 V
  • 50 Hz
 0.95
564084 EDC57C_20W935_120A_VS4 39 pcs.
  • 20 W
  • 120 V
  • 50 Hz
 0.95
564085 EDC57C_20W940_120A_VS4 39 pcs.
  • 20 W
  • 120 V
  • 50 Hz
 0.95
564086 EDC57C_20W950_120A_VS4 39 pcs.
  • 20 W
  • 120 V
  • 50 Hz
 0.95
564087 EDC57C_30W827_120A_VS4 55 pcs.
  • 30 W
  • 120 V
  • 50 Hz
 0.95
564088 EDC57C_30W830_120A_VS4 55 pcs.
  • 30 W
  • 120 V
  • 50 Hz
 0.95
564089 EDC57C_30W835_120A_VS4 55 pcs.
  • 30 W
  • 120 V
  • 50 Hz
 0.95
564090 EDC57C_30W840_120A_VS4 55 pcs.
  • 30 W
  • 120 V
  • 50 Hz
 0.95
564091 EDC57C_30W850_120A_VS4 55 pcs.
  • 30 W
  • 120 V
  • 50 Hz
 0.95
564092 EDC57C_30W927_120A_VS4 55 pcs.
  • 30 W
  • 120 V
  • 50 Hz
 0.95
564093 EDC57C_30W930_120A_VS4 55 pcs.
  • 30 W
  • 120 V
  • 50 Hz
 0.95
564094 EDC57C_30W935_120A_VS4 55 pcs.
  • 30 W
  • 120 V
  • 50 Hz
 0.95
564095 EDC57C_30W940_120A_VS4 55 pcs.
  • 30 W
  • 120 V
  • 50 Hz
 0.95
564096 EDC57C_30W950_120A_VS4 55 pcs.
  • 30 W
  • 120 V
  • 50 Hz
 0.95
564097 EDC57C_40W827_120A_VS4 72 pcs.
  • 40 W
  • 120 V
  • 50 Hz
 0.95
564098 EDC57C_40W830_120A_VS4 72 pcs.
  • 40 W
  • 120 V
  • 50 Hz
 0.95
564099 EDC57C_40W835_120A_VS4 72 pcs.
  • 40 W
  • 120 V
  • 50 Hz
 0.95
564100 EDC57C_40W840_120A_VS4 72 pcs.
  • 40 W
  • 120 V
  • 50 Hz
 0.95
564101 EDC57C_40W850_120A_VS4 72 pcs.
  • 40 W
  • 120 V
  • 50 Hz
 0.95
564102 EDC57C_40W927_120A_VS4 72 pcs.
  • 40 W
  • 120 V
  • 50 Hz
 0.95
564103 EDC57C_40W930_120A_VS4 72 pcs.
  • 40 W
  • 120 V
  • 50 Hz
 0.95
564104 EDC57C_40W935_120A_VS4 72 pcs.
  • 40 W
  • 120 V
  • 50 Hz
 0.95
564105 EDC57C_40W940_120A_VS4 72 pcs.
  • 40 W
  • 120 V
  • 50 Hz
 0.95
564106 EDC57C_40W950_120A_VS4 72 pcs.
  • 40 W
  • 120 V
  • 50 Hz
 0.95
Ref. No. Type Chip quantity Typ. luminous flux at If Typ. efficiency at If Typ. CRI (Ra)
564057 EDC57C_10W827_120A_VS4 20 pcs.
  • 884 lm
  • 88 lm/W
  • 80
564058 EDC57C_10W830_120A_VS4 20 pcs.
  • 950 lm
  • 95 lm/W
  • 80
564059 EDC57C_10W835_120A_VS4 20 pcs.
  • 969 lm
  • 97 lm/W
  • 80
564060 EDC57C_10W840_120A_VS4 20 pcs.
  • 988 lm
  • 99 lm/W
  • 80
564061 EDC57C_10W850_120A_VS4 20 pcs.
  • 1017 lm
  • 102 lm/W
  • 80
564062 EDC57C_10W927_120A_VS4 20 pcs.
  • 777 lm
  • 78 lm/W
  • 90
564063 EDC57C_10W930_120A_VS4 20 pcs.
  • 836 lm
  • 84 lm/W
  • 90
564064 EDC57C_10W935_120A_VS4 20 pcs.
  • 853 lm
  • 85 lm/W
  • 90
564065 EDC57C_10W940_120A_VS4 20 pcs.
  • 869 lm
  • 87 lm/W
  • 90
564066 EDC57C_10W950_120A_VS4 20 pcs.
  • 895 lm
  • 89 lm/W
  • 90
564067 EDC57C_15W827_120A_VS4 29 pcs.
  • 1325 lm
  • 88 lm/W
  • 80
564068 EDC57C_15W830_120A_VS4 29 pcs.
  • 1425 lm
  • 95 lm/W
  • 80
564069 EDC57C_15W835_120A_VS4 29 pcs.
  • 1454 lm
  • 97 lm/W
  • 80
564070 EDC57C_15W840_120A_VS4 29 pcs.
  • 1482 lm
  • 99 lm/W
  • 80
564071 EDC57C_15W850_120A_VS4 29 pcs.
  • 1525 lm
  • 102 lm/W
  • 80
564072 EDC57C_15W927_120A_VS4 29 pcs.
  • 1166 lm
  • 78 lm/W
  • 90
564073 EDC57C_15W930_120A_VS4 29 pcs.
  • 1254 lm
  • 84 lm/W
  • 90
564074 EDC57C_15W935_120A_VS4 29 pcs.
  • 1279 lm
  • 85 lm/W
  • 90
564075 EDC57C_15W940_120A_VS4 29 pcs.
  • 1304 lm
  • 87 lm/W
  • 90
564076 EDC57C_15W950_120A_VS4 29 pcs.
  • 1342 lm
  • 89 lm/W
  • 90
564077 EDC57C_20W827_120A_VS4 39 pcs.
  • 1767 lm
  • 88 lm/W
  • 80
564078 EDC57C_20W830_120A_VS4 39 pcs.
  • 1900 lm
  • 95 lm/W
  • 80
564079 EDC57C_20W835_120A_VS4 39 pcs.
  • 1938 lm
  • 97 lm/W
  • 80
564080 EDC57C_20W840_120A_VS4 39 pcs.
  • 1976 lm
  • 99 lm/W
  • 80
564081 EDC57C_20W850_120A_VS4 39 pcs.
  • 2033 lm
  • 102 lm/W
  • 80
564082 EDC57C_20W927_120A_VS4 39 pcs.
  • 1555 lm
  • 78 lm/W
  • 90
564083 EDC57C_20W930_120A_VS4 39 pcs.
  • 1672 lm
  • 84 lm/W
  • 90
564084 EDC57C_20W935_120A_VS4 39 pcs.
  • 1705 lm
  • 85 lm/W
  • 90
564085 EDC57C_20W940_120A_VS4 39 pcs.
  • 1739 lm
  • 87 lm/W
  • 90
564086 EDC57C_20W950_120A_VS4 39 pcs.
  • 1789 lm
  • 89 lm/W
  • 90
564087 EDC57C_30W827_120A_VS4 55 pcs.
  • 2571 lm
  • 86 lm/W
  • 80
564088 EDC57C_30W830_120A_VS4 55 pcs.
  • 2765 lm
  • 92 lm/W
  • 80
564089 EDC57C_30W835_120A_VS4 55 pcs.
  • 2820 lm
  • 94 lm/W
  • 80
564090 EDC57C_30W840_120A_VS4 55 pcs.
  • 2875 lm
  • 96 lm/W
  • 80
564091 EDC57C_30W850_120A_VS4 55 pcs.
  • 2958 lm
  • 99 lm/W
  • 80
564092 EDC57C_30W927_120A_VS4 55 pcs.
  • 2262 lm
  • 75 lm/W
  • 90
564093 EDC57C_30W930_120A_VS4 55 pcs.
  • 2433 lm
  • 81 lm/W
  • 90
564094 EDC57C_30W935_120A_VS4 55 pcs.
  • 2481 lm
  • 83 lm/W
  • 90
564095 EDC57C_30W940_120A_VS4 55 pcs.
  • 2530 lm
  • 84 lm/W
  • 90
564096 EDC57C_30W950_120A_VS4 55 pcs.
  • 2603 lm
  • 87 lm/W
  • 90
564097 EDC57C_40W827_120A_VS4 72 pcs.
  • 3287 lm
  • 82 lm/W
  • 80
564098 EDC57C_40W830_120A_VS4 72 pcs.
  • 3534 lm
  • 88 lm/W
  • 80
564099 EDC57C_40W835_120A_VS4 72 pcs.
  • 3605 lm
  • 90 lm/W
  • 80
564100 EDC57C_40W840_120A_VS4 72 pcs.
  • 3675 lm
  • 92 lm/W
  • 80
564101 EDC57C_40W850_120A_VS4 72 pcs.
  • 3781 lm
  • 95 lm/W
  • 80
564102 EDC57C_40W927_120A_VS4 72 pcs.
  • 2892 lm
  • 72 lm/W
  • 90
564103 EDC57C_40W930_120A_VS4 72 pcs.
  • 3110 lm
  • 78 lm/W
  • 90
564104 EDC57C_40W935_120A_VS4 72 pcs.
  • 3172 lm
  • 79 lm/W
  • 90
564105 EDC57C_40W940_120A_VS4 72 pcs.
  • 3234 lm
  • 81 lm/W
  • 90
564106 EDC57C_40W950_120A_VS4 72 pcs.
  • 3328 lm
  • 83 lm/W
  • 90
Ref. No. Type Chip quantity
564057 EDC57C_10W827_120A_VS4 20 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564058 EDC57C_10W830_120A_VS4 20 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564059 EDC57C_10W835_120A_VS4 20 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564060 EDC57C_10W840_120A_VS4 20 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564061 EDC57C_10W850_120A_VS4 20 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564062 EDC57C_10W927_120A_VS4 20 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564063 EDC57C_10W930_120A_VS4 20 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564064 EDC57C_10W935_120A_VS4 20 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564065 EDC57C_10W940_120A_VS4 20 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564066 EDC57C_10W950_120A_VS4 20 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564067 EDC57C_15W827_120A_VS4 29 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564068 EDC57C_15W830_120A_VS4 29 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564069 EDC57C_15W835_120A_VS4 29 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564070 EDC57C_15W840_120A_VS4 29 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564071 EDC57C_15W850_120A_VS4 29 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564072 EDC57C_15W927_120A_VS4 29 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564073 EDC57C_15W930_120A_VS4 29 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564074 EDC57C_15W935_120A_VS4 29 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564075 EDC57C_15W940_120A_VS4 29 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564076 EDC57C_15W950_120A_VS4 29 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564077 EDC57C_20W827_120A_VS4 39 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564078 EDC57C_20W830_120A_VS4 39 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564079 EDC57C_20W835_120A_VS4 39 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564080 EDC57C_20W840_120A_VS4 39 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564081 EDC57C_20W850_120A_VS4 39 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564082 EDC57C_20W927_120A_VS4 39 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564083 EDC57C_20W930_120A_VS4 39 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564084 EDC57C_20W935_120A_VS4 39 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564085 EDC57C_20W940_120A_VS4 39 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564086 EDC57C_20W950_120A_VS4 39 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564087 EDC57C_30W827_120A_VS4 55 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564088 EDC57C_30W830_120A_VS4 55 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564089 EDC57C_30W835_120A_VS4 55 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564090 EDC57C_30W840_120A_VS4 55 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564091 EDC57C_30W850_120A_VS4 55 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564092 EDC57C_30W927_120A_VS4 55 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564093 EDC57C_30W930_120A_VS4 55 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564094 EDC57C_30W935_120A_VS4 55 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564095 EDC57C_30W940_120A_VS4 55 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564096 EDC57C_30W950_120A_VS4 55 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564097 EDC57C_40W827_120A_VS4 72 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564098 EDC57C_40W830_120A_VS4 72 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564099 EDC57C_40W835_120A_VS4 72 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564100 EDC57C_40W840_120A_VS4 72 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564101 EDC57C_40W850_120A_VS4 72 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564102 EDC57C_40W927_120A_VS4 72 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564103 EDC57C_40W930_120A_VS4 72 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564104 EDC57C_40W935_120A_VS4 72 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564105 EDC57C_40W940_120A_VS4 72 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
564106 EDC57C_40W950_120A_VS4 72 pcs.
Operating voltage Performance temperature (tp) Service life Lumen maintenance at (L) Failure rate (B)
  • 120 V
  • 55 °C
  • 50000 hrs.
  • 70
  • 50
Ref. No. Type Chip quantity
564057 EDC57C_10W827_120A_VS4 20 pcs.
564058 EDC57C_10W830_120A_VS4 20 pcs.
564059 EDC57C_10W835_120A_VS4 20 pcs.
564060 EDC57C_10W840_120A_VS4 20 pcs.
564061 EDC57C_10W850_120A_VS4 20 pcs.
564062 EDC57C_10W927_120A_VS4 20 pcs.
564063 EDC57C_10W930_120A_VS4 20 pcs.
564064 EDC57C_10W935_120A_VS4 20 pcs.
564065 EDC57C_10W940_120A_VS4 20 pcs.
564066 EDC57C_10W950_120A_VS4 20 pcs.
564067 EDC57C_15W827_120A_VS4 29 pcs.
564068 EDC57C_15W830_120A_VS4 29 pcs.
564069 EDC57C_15W835_120A_VS4 29 pcs.
564070 EDC57C_15W840_120A_VS4 29 pcs.
564071 EDC57C_15W850_120A_VS4 29 pcs.
564072 EDC57C_15W927_120A_VS4 29 pcs.
564073 EDC57C_15W930_120A_VS4 29 pcs.
564074 EDC57C_15W935_120A_VS4 29 pcs.
564075 EDC57C_15W940_120A_VS4 29 pcs.
564076 EDC57C_15W950_120A_VS4 29 pcs.
564077 EDC57C_20W827_120A_VS4 39 pcs.
564078 EDC57C_20W830_120A_VS4 39 pcs.
564079 EDC57C_20W835_120A_VS4 39 pcs.
564080 EDC57C_20W840_120A_VS4 39 pcs.
564081 EDC57C_20W850_120A_VS4 39 pcs.
564082 EDC57C_20W927_120A_VS4 39 pcs.
564083 EDC57C_20W930_120A_VS4 39 pcs.
564084 EDC57C_20W935_120A_VS4 39 pcs.
564085 EDC57C_20W940_120A_VS4 39 pcs.
564086 EDC57C_20W950_120A_VS4 39 pcs.
564087 EDC57C_30W827_120A_VS4 55 pcs.
564088 EDC57C_30W830_120A_VS4 55 pcs.
564089 EDC57C_30W835_120A_VS4 55 pcs.
564090 EDC57C_30W840_120A_VS4 55 pcs.
564091 EDC57C_30W850_120A_VS4 55 pcs.
564092 EDC57C_30W927_120A_VS4 55 pcs.
564093 EDC57C_30W930_120A_VS4 55 pcs.
564094 EDC57C_30W935_120A_VS4 55 pcs.
564095 EDC57C_30W940_120A_VS4 55 pcs.
564096 EDC57C_30W950_120A_VS4 55 pcs.
564097 EDC57C_40W827_120A_VS4 72 pcs.
564098 EDC57C_40W830_120A_VS4 72 pcs.
564099 EDC57C_40W835_120A_VS4 72 pcs.
564100 EDC57C_40W840_120A_VS4 72 pcs.
564101 EDC57C_40W850_120A_VS4 72 pcs.
564102 EDC57C_40W927_120A_VS4 72 pcs.
564103 EDC57C_40W930_120A_VS4 72 pcs.
564104 EDC57C_40W935_120A_VS4 72 pcs.
564105 EDC57C_40W940_120A_VS4 72 pcs.
564106 EDC57C_40W950_120A_VS4 72 pcs.
Ref. No. Type Chip quantity 2D data 3D data
564057 EDC57C_10W827_120A_VS4 20 pcs.
564058 EDC57C_10W830_120A_VS4 20 pcs.
564059 EDC57C_10W835_120A_VS4 20 pcs.
564060 EDC57C_10W840_120A_VS4 20 pcs.
564061 EDC57C_10W850_120A_VS4 20 pcs.
564062 EDC57C_10W927_120A_VS4 20 pcs.
564063 EDC57C_10W930_120A_VS4 20 pcs.
564064 EDC57C_10W935_120A_VS4 20 pcs.
564065 EDC57C_10W940_120A_VS4 20 pcs.
564066 EDC57C_10W950_120A_VS4 20 pcs.
564067 EDC57C_15W827_120A_VS4 29 pcs.
564068 EDC57C_15W830_120A_VS4 29 pcs.
564069 EDC57C_15W835_120A_VS4 29 pcs.
564070 EDC57C_15W840_120A_VS4 29 pcs.
564071 EDC57C_15W850_120A_VS4 29 pcs.
564072 EDC57C_15W927_120A_VS4 29 pcs.
564073 EDC57C_15W930_120A_VS4 29 pcs.
564074 EDC57C_15W935_120A_VS4 29 pcs.
564075 EDC57C_15W940_120A_VS4 29 pcs.
564076 EDC57C_15W950_120A_VS4 29 pcs.
564077 EDC57C_20W827_120A_VS4 39 pcs.
564078 EDC57C_20W830_120A_VS4 39 pcs.
564079 EDC57C_20W835_120A_VS4 39 pcs.
564080 EDC57C_20W840_120A_VS4 39 pcs.
564081 EDC57C_20W850_120A_VS4 39 pcs.
564082 EDC57C_20W927_120A_VS4 39 pcs.
564083 EDC57C_20W930_120A_VS4 39 pcs.
564084 EDC57C_20W935_120A_VS4 39 pcs.
564085 EDC57C_20W940_120A_VS4 39 pcs.
564086 EDC57C_20W950_120A_VS4 39 pcs.
564087 EDC57C_30W827_120A_VS4 55 pcs.
564088 EDC57C_30W830_120A_VS4 55 pcs.
564089 EDC57C_30W835_120A_VS4 55 pcs.
564090 EDC57C_30W840_120A_VS4 55 pcs.
564091 EDC57C_30W850_120A_VS4 55 pcs.
564092 EDC57C_30W927_120A_VS4 55 pcs.
564093 EDC57C_30W930_120A_VS4 55 pcs.
564094 EDC57C_30W935_120A_VS4 55 pcs.
564095 EDC57C_30W940_120A_VS4 55 pcs.
564096 EDC57C_30W950_120A_VS4 55 pcs.
564097 EDC57C_40W827_120A_VS4 72 pcs.
564098 EDC57C_40W830_120A_VS4 72 pcs.
564099 EDC57C_40W835_120A_VS4 72 pcs.
564100 EDC57C_40W840_120A_VS4 72 pcs.
564101 EDC57C_40W850_120A_VS4 72 pcs.
564102 EDC57C_40W927_120A_VS4 72 pcs.
564103 EDC57C_40W930_120A_VS4 72 pcs.
564104 EDC57C_40W935_120A_VS4 72 pcs.
564105 EDC57C_40W940_120A_VS4 72 pcs.
564106 EDC57C_40W950_120A_VS4 72 pcs.
Ref. No. Type
564057 EDC57C_10W827_120A_VS4
564058 EDC57C_10W830_120A_VS4
564059 EDC57C_10W835_120A_VS4
564060 EDC57C_10W840_120A_VS4
564061 EDC57C_10W850_120A_VS4
564062 EDC57C_10W927_120A_VS4
564063 EDC57C_10W930_120A_VS4
564064 EDC57C_10W935_120A_VS4
564065 EDC57C_10W940_120A_VS4
564066 EDC57C_10W950_120A_VS4
564067 EDC57C_15W827_120A_VS4
564068 EDC57C_15W830_120A_VS4
564069 EDC57C_15W835_120A_VS4
564070 EDC57C_15W840_120A_VS4
564071 EDC57C_15W850_120A_VS4
564072 EDC57C_15W927_120A_VS4
564073 EDC57C_15W930_120A_VS4
564074 EDC57C_15W935_120A_VS4
564075 EDC57C_15W940_120A_VS4
564076 EDC57C_15W950_120A_VS4
564077 EDC57C_20W827_120A_VS4
564078 EDC57C_20W830_120A_VS4
564079 EDC57C_20W835_120A_VS4
564080 EDC57C_20W840_120A_VS4
564081 EDC57C_20W850_120A_VS4
564082 EDC57C_20W927_120A_VS4
564083 EDC57C_20W930_120A_VS4
564084 EDC57C_20W935_120A_VS4
564085 EDC57C_20W940_120A_VS4
564086 EDC57C_20W950_120A_VS4
564087 EDC57C_30W827_120A_VS4
564088 EDC57C_30W830_120A_VS4
564089 EDC57C_30W835_120A_VS4
564090 EDC57C_30W840_120A_VS4
564091 EDC57C_30W850_120A_VS4
564092 EDC57C_30W927_120A_VS4
564093 EDC57C_30W930_120A_VS4
564094 EDC57C_30W935_120A_VS4
564095 EDC57C_30W940_120A_VS4
564096 EDC57C_30W950_120A_VS4
564097 EDC57C_40W827_120A_VS4
564098 EDC57C_40W830_120A_VS4
564099 EDC57C_40W835_120A_VS4
564100 EDC57C_40W840_120A_VS4
564101 EDC57C_40W850_120A_VS4
564102 EDC57C_40W927_120A_VS4
564103 EDC57C_40W930_120A_VS4
564104 EDC57C_40W935_120A_VS4
564105 EDC57C_40W940_120A_VS4
564106 EDC57C_40W950_120A_VS4
Ref. No. Type 2D data 3D data
564057 EDC57C_10W827_120A_VS4
  • 50
564058 EDC57C_10W830_120A_VS4
  • 50
564059 EDC57C_10W835_120A_VS4
  • 50
564060 EDC57C_10W840_120A_VS4
  • 50
564061 EDC57C_10W850_120A_VS4
  • 50
564062 EDC57C_10W927_120A_VS4
  • 50
564063 EDC57C_10W930_120A_VS4
  • 50
564064 EDC57C_10W935_120A_VS4
  • 50
564065 EDC57C_10W940_120A_VS4
  • 50
564066 EDC57C_10W950_120A_VS4
  • 50
564067 EDC57C_15W827_120A_VS4
  • 50
564068 EDC57C_15W830_120A_VS4
  • 50
564069 EDC57C_15W835_120A_VS4
  • 50
564070 EDC57C_15W840_120A_VS4
  • 50
564071 EDC57C_15W850_120A_VS4
  • 50
564072 EDC57C_15W927_120A_VS4
  • 50
564073 EDC57C_15W930_120A_VS4
  • 50
564074 EDC57C_15W935_120A_VS4
  • 50
564075 EDC57C_15W940_120A_VS4
  • 50
564076 EDC57C_15W950_120A_VS4
  • 50
564077 EDC57C_20W827_120A_VS4
  • 50
564078 EDC57C_20W830_120A_VS4
  • 50
564079 EDC57C_20W835_120A_VS4
  • 50
564080 EDC57C_20W840_120A_VS4
  • 50
564081 EDC57C_20W850_120A_VS4
  • 50
564082 EDC57C_20W927_120A_VS4
  • 50
564083 EDC57C_20W930_120A_VS4
  • 50
564084 EDC57C_20W935_120A_VS4
  • 50
564085 EDC57C_20W940_120A_VS4
  • 50
564086 EDC57C_20W950_120A_VS4
  • 50
564087 EDC57C_30W827_120A_VS4
  • 50
564088 EDC57C_30W830_120A_VS4
  • 50
564089 EDC57C_30W835_120A_VS4
  • 50
564090 EDC57C_30W840_120A_VS4
  • 50
564091 EDC57C_30W850_120A_VS4
  • 50
564092 EDC57C_30W927_120A_VS4
  • 50
564093 EDC57C_30W930_120A_VS4
  • 50
564094 EDC57C_30W935_120A_VS4
  • 50
564095 EDC57C_30W940_120A_VS4
  • 50
564096 EDC57C_30W950_120A_VS4
  • 50
564097 EDC57C_40W827_120A_VS4
  • 50
564098 EDC57C_40W830_120A_VS4
  • 50
564099 EDC57C_40W835_120A_VS4
  • 50
564100 EDC57C_40W840_120A_VS4
  • 50
564101 EDC57C_40W850_120A_VS4
  • 50
564102 EDC57C_40W927_120A_VS4
  • 50
564103 EDC57C_40W930_120A_VS4
  • 50
564104 EDC57C_40W935_120A_VS4
  • 50
564105 EDC57C_40W940_120A_VS4
  • 50
564106 EDC57C_40W950_120A_VS4
  • 50

Our partner from the USA has been developing and producing high-quality semiconductor for about 30 years. CREE has been our partner for an extensive range of LEDs since 2004. The product range includes a wide range of high brightness, high power LEDs offered in SMD as well as THT and COB technology.

Your contact: Olaf Naumann

Phone +49 (0)2842 980-211
Olaf.Naumann@vossloh-schwabe.com

Nichia from Japan, the inventor of the white LEDs, has been one of the partners of VS since 1995. The product range includes a comprehensive range of high brightness and high power LEDs, as well as a UV LED product range covering all power classes.

Your contact: Ulf Hilsenberg

Phone +49 2842 980-213
Ulf.Hilsenberg@vossloh-schwabe.com

To complement our LED range, we offer secondary optics and reflectors from our partners Carclo (www.carclo.com) and LEDiL (www.ledil.com). The product range includes a large selection of optics, optic holders and reflectors made of PMMA and silicone. We specifically stock up on a wide range of products to match the LEDs from CREE and Nichia we offer.



We develop and produce a variety of LED optics for shop, office, hall and street lighting for you. Optics are available in various designs (round, square, linear) made of high-quality materials (PMMA, silicone) and with any beam angles (narrow/wide, asymmetrical or combined).

Our partner from the USA has been developing and producing high-quality semiconductor for about 30 years. CREE has been our partner for an extensive range of LEDs since 2004. The product range includes a wide range of high brightness, high power LEDs offered in SMD as well as THT and COB technology.

Your contact: Olaf Naumann

Phone +49 (0)2842 980-211
Olaf.Naumann@vossloh-schwabe.com

Nichia from Japan, the inventor of the white LEDs, has been one of the partners of VS since 1995. The product range includes a comprehensive range of high brightness and high power LEDs, as well as a UV LED product range covering all power classes.

Your contact: Ulf Hilsenberg

Phone +49 2842 980-213
Ulf.Hilsenberg@vossloh-schwabe.com
